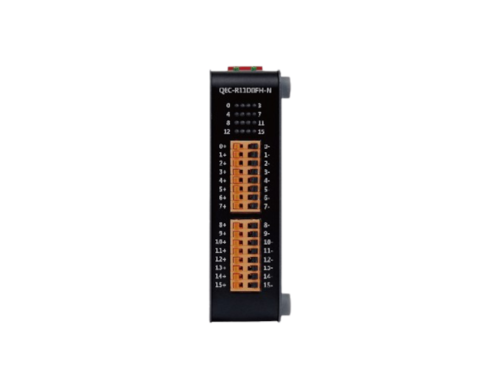

QEC-R00D0FH is a standard industrial EtherCAT slave digital I/O module, with standalone isolated design on
each channel to protect from harmful interference and influences critical environment. The modules offer a wide
variety of I/O channels that can be intermixed between 4, 8, 12 and up to 16 I/O channels, also providing custom
service to save unnecessary components cost.
Comply with EtherCAT Conformance Test Tool (ET9400), the QEC-RXXD is qualified and can be cooperated with the
EtherCAT master systems for quickly implement in industrial applications.
Capable up to 100 µs EtherCAT cycle time, as well as the Distributed Clock (DC) mode, QEC-RXXD is aimed for high
precision and synchronous applications requirement. Designed with the up-to-date silicon components, it also reduce
heat generation and extend product life while also providing automatic internal status monitoring, including
voltage, current and operating temperature, to help provide effective carbon footprint tracking.
For Digital Output of QEC RXXD series, the maximum frequency is also 8KHz, all channels are polarity neutral, with up
to 3750Vrms ESD isolation protection, and can drive up to 56Vdc@500mA.
QEC-RXXD offers users an easy way to update the firmware via FOE and features two networks available for EtherCAT
Cable Redundancy. The module status can be indicated by LEDs for troubleshooting and verifying I/O status. Also
provides flexible installation and efficient I/O channel configurations for connectivity, reducing infrastructure
and operating costs, and can be deployed in network topologies such as star, line, or ring.
QEC-RXXD measures 107.45 x 77.4 x 30 mm, and supports standard system operation from -20 to +70°C and optional -40 to
+85°C. It can be easily installed by Din Rail mounting kit and features a European-style terminal block that
provides easy installation and removable wiring terminals for easy deployment.
