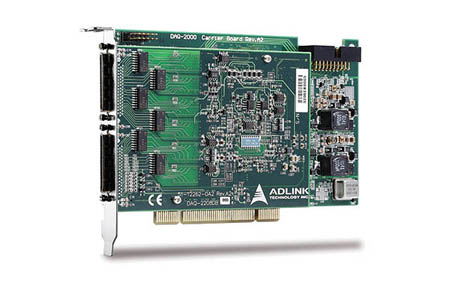

Adlink DAQ-2208 - 96-CH 3MS/S 12-bit multi-function card
by ADLINK
|
|
|
|
- 12-bit A/D and sampling rate up to 3MS/s
- 96-CH single-ended or 48-CH differential inputs
- 1024-configuration channel-gain queue
- Analog and digital trigger
- Bus-mastering DMA with scatter-gather technology
- Full auto calibration
- Multiple cards synchronization
- 2-CH 12-bit 1Ms/s analog outputs with waveform generation functionality (DAQ-2204 only
|
|
|
ADLINK DAQe-2208 is an Ultrahigh-density and high-performance analog input card. DAQe-2208 can sample up to 96 AI channels with different gain settings and scan sequences. It makes them ideal for dealing with high-density analog signals with various input ranges and sampling speeds. DAQe-2208 also offer differential mode for 48 AI channels in order to achieve maximum noise elimination.
DAQe-2208 also features analog and digital triggering and 24-CH programmable digital I/O lines. Like all the other members in the PXI/DAQ/DAQe-2000 family, DAQe-2208 are able to perform analog input at full speed while multiple cards can be synchronized
through the SSI (System Synchronization Interface) bus. The auto-calibration functions adjust the gain and offset to within specified accuracies so that you do not have to adjust trimpots to
calibrate the cards.
|
|
|
|
