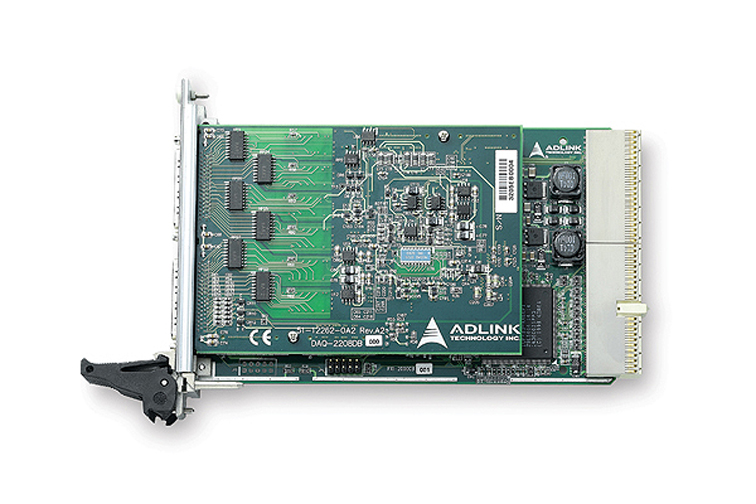

PXI-2208 - 96-CH 3MS/S 12-bit multi-function PXI module
by ADLINK
|
|
|
|
- PXI specifications Rev. 2.0 compliant
- 3U Eurocard form factor, CompactPCI compliant (PICMG 2.0 R3.0)
- 96-CH single-ended or 48-CH differential analog inputs
- Up to 3 MS/s sampling rate
- 12-bit A/D resolution
- On-board 1k-sample A/D FIFO
- Bipolar or unipolar analog input ranges
- Programmable gains of x1, x2, x4, x5, x8, x10, x20, x40, x50, x200
|
|
|
ADLINIK PXI-2208 is an ultra high-density, highperformance analog input module. This device can sample up to 96 AI channels with various gain settings and scan sequences, making it ideal for dealing with ultra high-density analog signals with various input ranges and sampling speeds. These devices also offer a differential mode for 48 AI channels to achieve maximum noise elimination. The PXI-2208 also features analog and digital triggering and 24-CH programmable digital I/O lines. Like all the other members in the PXI-2000 family, the PXI-2208 is able to perform analog input at full speed. Multiple modules can also be synchronized through the PXI trigger bus. The auto-calibration feature adjusts the gain and offset to a specified accuracy, eliminating the need to calibrate the modules by adjusting trimpots.
|
|
