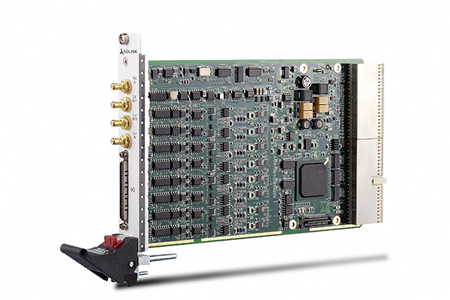

PXI-2022 - 16-CH 16-Bit 250kS/s Simultaneous-Sampling DAQ by ADLINK

PXI-2022 - 16-CH 16-Bit 250kS/s Simultaneous-Sampling DAQ

Write a review Write a review
  • PXI specification Rev 2.2 compliant
  • 8/16-CH differential analog inputs (PXI-2020/PXI-2022)
  • Multiple cards synchronization through PXI trigger bus
  • 16-bit A/D resolution
  • Programmable gains of x1, x4
  • Bipolar analog input
  • Onboard 8 K-sample (16 KB) memory for data storage
  • 4-CH TTL digital input/output
Mfg SKU # : PXI-2022
Our Price : $3,261.00
Stock :Call for Availability
Quantity :
ADLINK’s PXI- 2020/2022 are simultaneous-sampling multi-function DAQ cards to meet a wide range of application requirements. The device can simultaneously sample 8/16 AI channels with differential input configurations in order to achieve maximum noise elimination. If more analog input or output channels are required, multiple cards can be synchronized through the PXI Trigger bus. The PXI-2020/2022 features digital triggering, 4-CH programmable digital I/O lines, and 2-CH 32-bit general-purpose timer/ counters. The auto-calibration functions adjust the gain and offset to within specified accuracies such that you do not have to adjust trim pots to calibrate the cards.
