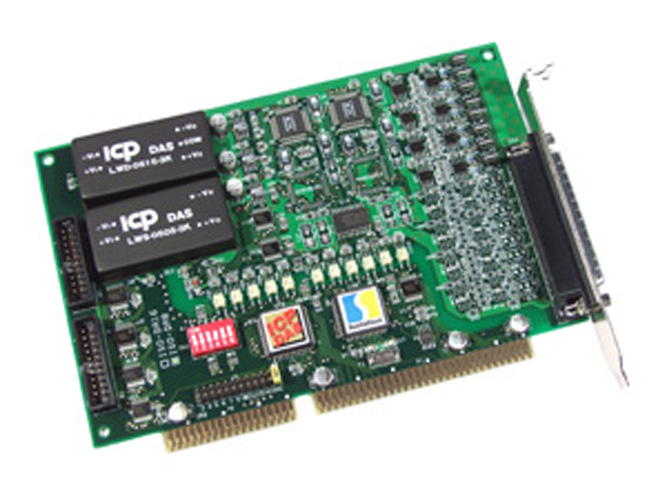

ISO-DA16/S - ISO-DA16 with DN-37 by ICP DAS
|
|
|
16 Channel, 14-Bit Isolated Analog Output Board. Includes one CA-4002 D-Sub connector
|
|
|
The ISO-DA8 is bus-type isolated 14-bit D/A card for PC/AT compatible computers. The optical isolation of the ISO-DA8 can operate with up to 2500Vrms of common-mode voltage. The ISO-DA8 offers 8-channel, double-buffered analog output. The output range may be configured from these ranges : ±10V, ±5V, 0 ~10V, 0 ~5V voltage output or 4 to 20mA or 0 to 20mA current loop sinking.
- Jumperless and Trimless
- Power-on value of Analog Output can be pre-defined by the User
- Stored in the on boards EEPROM
- High channel count output can be design implemented in half size
- Calibration is performed under software control
- Eliminates manual trimpot adjustments.
- Calibration data is stored in EEPROM
- Easy recalibration ensures the accuracy of the board.
- ISA bus
- 2500Vdc photo-isolation protection
- 8-channel, 14-bit analog output
- Voltage/ current outputs from each converter
- Output Type ( Unipolar or Bipolar )
- output range ( 0 ~ 5v, ± 5V, 0 ~ 10V, ± 10V) can be software programmble
- 4-20mA current sink to ground from each converter
- Double-buffered D/A latches
- Command set programming
- Software Calibration
- Software:
- Toolkit for DOS
- Toolkit for Windows 95/98
- Toolkit for Windows NT
- Toolkit for Windows 2000/XP
- Toolkit for Labview 95/98
- Toolkit for Labview NT
- Toolkit for Labview 2000/XP
- Toolkit for OCX 95/98
- Toolkit for OCX NT
- Toolkit for OCX 2000/XP
- Toolkit for LINUX
- Toolkit for DasyLab
- Applications:
- Programmable voltage source
- Programmable current sink
- Harsh environment operation
- Process control
Analog Outputs |
D/A converter |
Sipex Quad 14-bit MDAC |
Channels |
8 independent |
Resolution |
14-bit |
Type |
double-buffered, multiplying |
Integral linearity |
0.01% FSR typical |
Differential linearity |
0.006% FSR ; typical |
Voltage Output Range |
Unipolar |
0 ~ 5V or 0 ~ 10V |
Bipolar |
±10Vor, ±5V |
Current drive |
±5mA |
Absolute accuracy |
0.01% FSR typical |
Power on state |
0V bipolar ; 5V unipolar |
Current Output Range |
Current output |
0 - 20mA or 4 - 20mA |
Absolute Accuracy |
0.1% FSR typical |
Excitation voltage range |
+ 7 V to +40V |
Power On state |
4mA bipolar , 12mA Unipolar |
Stability |
Offset temperature coefficient |
±50mV/°C |
Gain temperature coefficient |
±10ppm°C |
General Environment |
Power Requirements |
ISO-DA8 +5VDC @800mA max |
ISO-DA16+5VDC @1400mA max. |
Operating temperature |
0° - 50°C |
Storage temperature |
-20°C to 70°C |
Humidity |
0% to 90% non-condensing |
Dimensions |
182mm x 122mm |
Power Requirements |
+5V @800mA max.(ISO-DA8) |
+5V @1400mA max.(ISO-DA16) |
|
|
