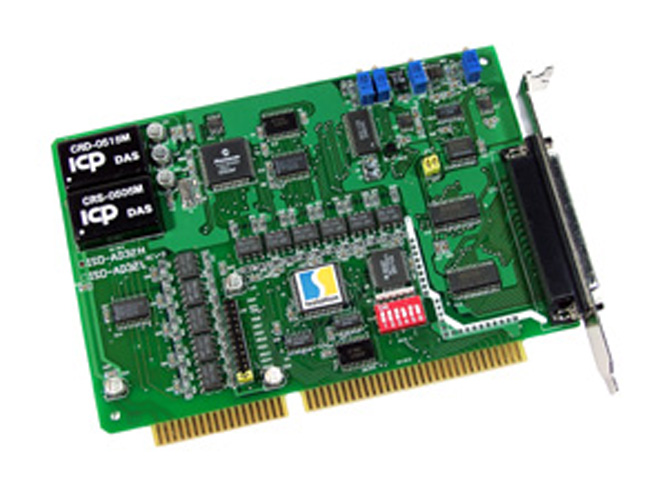

The ISO-AD32H/L ( H for high gain / L for low gain ) is a bus-type isolated 12-bit A/D board for PC/AT compatible computers. The isolation inputs can operate with up to 500Vrms of common-mode voltage. The ISO-AD32H/L features a 200KHz 12-bit analog-to-digital converter, on board 1K byte FIFO buffer, and 32 singled-ended or 16 differential analog input channels. The analog input allows auto-channel /gain scan . This board supports gap-free A/D conversion at 200KHz sampling rates for single channel or 100KHz sampling rates for channel scan . The "Hands-Off" design permits all board parameters (channel selection, gain, input type, and operating mode) to be performed with software . Once installed, you will never have to configure it again.
- Fast Speed -- up to 200KHz
- Sampling rate can be programmable
- On board FIFO buffer supports gap-free A/D conversion
- High channel count input can be implemented in half size
- 32 single-ended or 16 differential input channels, 500Vdc photo-isolation protection
- Maximum 200K 12-bit sampling rate
- Built-in 1K byte FIFO
- Auto-channel / gain scan
- Command set programming
- Gap-free A/D conversion
- Software:
- Toolkit for DOS
- Toolkit for Windows 95/98
- Toolkit for Windows NT
- Toolkit for Windows 2000/XP
- Toolkit for Labview 95/98
- Toolkit for Labview NT
- Toolkit for Labview 2000/XP
- Toolkit for OCX 95/98
- Toolkit for OCX NT
- Toolkit for OCX 2000/XP
- Toolkit for LINUX
- Toolkit for DasyLab
