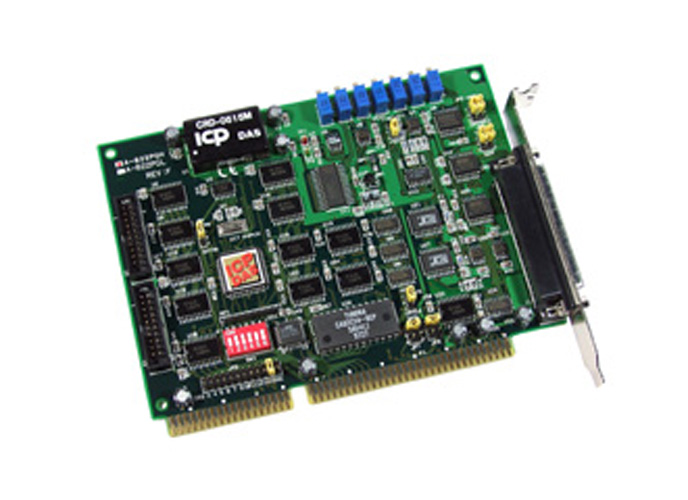

A-822PGL/S - A-822PGL + Daughter Board DB-8225
by ICP DAS
|
|
|
|
125KS/s 16 Channel 12 bit Analog Input, 2 Channel uni-polar/bi-polar 12 bit Analog Output with 16 Digital Input/16 Digital Output. (Low Grain). Includes Daughter Board DB-8225. Includes one CA-4002 D-Sub Connector.
|
|
|
A-822PGH/L is a 12-bit multifunction analog and digital I/O board for PC/AT compatible computers. A-822PGH/L offers 16 single-ended or 8 differential analog inputs and two channels of analog output with 12-bit resolution. A-822PGH/PGL has 16 digital input, 16 digital output, and one timer/counter channel. A-822PGH provides gains of 0.5, 1, 5, 10, 50, 100, 500, and 1000 while A-822PGL provides gains of 0.5, 1, 2, 4, and 8. Maximum sampling rate is 125 K samples/s. DMA operation is jumper selectable for levels 1 or 3. Interrupts are jumper selectable between 3 and 15.
- 12-bit A/D converter
- 12-bit D/A converter
- 16 single-ended or 8 differential input channels
- 125 k/s sampling rate
- Two 12-bit analog output channel
- Analog Output Range : 0 ~5V, 0 ~10V
- Software programmable gain :
- A-822PGL (Low Gain Version ) : 0.5, 1, 2, 4, 8
- A-822PGH(High Gain Version) : 0.5, 1, 5, 10, 50, 100, 500, 1000
- Interrupt handling
- A/D Trigger modes :
- Software Trigger
- Pacer Trigge
- , External Trigger
- Event Trigger
- A/D data transfer modes : polling , interrupt , DMA
- 16 digital input & 16 digital output
- 37 pin D-Sub connector
- Software:
- Toolkit for DOS
- Toolkit for Windows 95/98
- Toolkit for Windows NT
- Toolkit for Windows 2000/XP
- Toolkit for Labview 95/98
- Toolkit for Labview NT
- Toolkit for Labview 2000/XP
- ActiveX Control (OCX) 95/98
- ActiveX Control (OCX) NT
- ActiveX Control (OCX) 2000/XP
- Toolkit for LINUX
- Toolkit for DasyLab
- Applications:
- Signal analysis
- Industrial automation
- Laboratory automation
- Sensor interface
- FFT & frequency analysis
- Transient analysis
- Production tests
- Process control
| Analog Input |
| Channels |
16 single-ended/8 differential |
| A/D Converter |
12-bit, 8 μs conversion time |
| Sampling Rate |
125 kS/s. max. |
| Over voltage Protection |
Continuous +/-35 Vp-p |
| Input Impedance |
10 MΩ/6 pf |
| Trigger Modes |
Software, Pacer, External |
| Data Transfer |
Polling, Interrupt, DMA |
| Accuracy |
0.01 bit % of FSR ±1 LSB @ 25 °C, ± 10 V |
| Zero Drift |
15 ppm/°C of FSR |
| Analog Output |
| Channels |
2 independent |
| Resolution |
12-bit |
| Accuracy |
0.01% of FSR ± 1 LSB @ 25 °C, ± 10 V |
| Output Range |
Unipolar: 0 ~ 5 V, 0 ~10 V
Bipolar: +/-10 V |
| Output Driving |
+/- 5 mA |
| Slew Rate |
0.6 V/μs |
| Output Impedance |
0.1 Ω max. |
| Operating Mode |
Software |
| Digital Input |
| Channels |
16 |
| Compatibility |
5 V/TTL |
| Input Voltage |
Logic 0: 0.8 V max.
Logic 1: 2.0 V min. |
| Response Speed |
1.0 MHz (Typical) |
| Digital Output |
| Channels |
16 |
| Compatibility |
5 V/TTL |
| Output Voltage |
Logic 0: 0.4 V max.
Logic 1: 2.4 V min. |
| Output Capability |
Sink: 0.8 mA @ 0.8 V
Source: -2.4 mA @ 2.0 V |
| Response Speed |
1.0 MHz (Typical) |
| Timer/Counter |
| Channels |
3 independent |
| Resolution |
16-bit |
| Compatibility |
5 V/TTL |
| Input Frequency |
10 MHz max. |
| Reference Clock |
Internal: 2 MHz |
| General |
| Bus Type |
ISA |
| I/O Connector |
Female DB37 x 1
20-pin box header x 2 |
| Dimensions (L x W x D) |
163 mm x 124 mm x 22 mm |
| Power Consumption |
960 mA @ +5 V |
| Operating Temperature |
0 ~ 60 °C |
| Storage Temperature |
-20 ~ 70 °C |
| Humidity |
5 ~ 85% RH, non-condensing |
| Analog Input Range |
| Model |
A-822PGL (Low-Gain) |
| Gain |
0.5 |
1 |
2 |
4 |
8 |
| Unipolar (V) |
|
0 ~ 10 |
0 ~ 5 |
0 ~ 2.5 |
0 ~ 1.25 |
| Bipolar (V) |
+/- 10 |
+/- 5 |
+/- 2.5 |
+/- 1.25 |
+/- 0.625 |
| Sampling Rate Max. |
125 kS/s |
125 kS/s |
125 kS/s |
125 kS/s |
125 kS/s |
| Model |
A-822PGH (High-Gain) |
| Gain |
0.5 |
1 |
5 |
10 |
50 |
100 |
500 |
1000 |
| Unipolar (V) |
|
0 ~ 10 |
|
0 ~ 1 |
|
0 ~ 0.1 |
|
0 ~ 0.01 |
| Bipolar (V) |
+/- 10 |
+/- 5 |
+/- 1 |
+/- 0.5 |
+/- 0.1 |
+/- 0.05 |
+/- 0.01 |
+/- 0.005 |
| Sampling Rate Max. |
125 kS/s |
125 kS/s |
80 kS/s |
80 kS/s |
10 kS/s |
10 kS/s |
1 kS/s |
1 kS/s |
|
|
