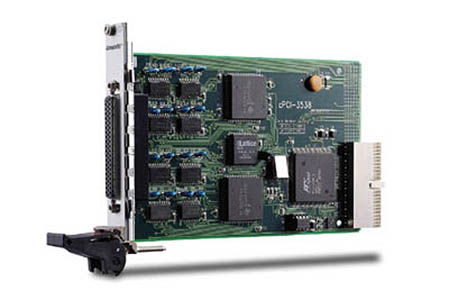

cPCI-3538 - 3U CompactPCI 8 ports Communication Module by ADLINK
|
|
|
- 32-bit CompactPCI, PICMG 2.0 Rev 2.1
- Plug-and-play, IRQ & I/O address automatically assigned by PCI BIOS
- 4/8 asynchronized communications ports with intelligent buffer
- Three RS-232 ports and one isolated RS-422/RS-485 port with 2500 VRMS isolation voltage for cPCI-3534, and eight RS-232 ports for cPCI-3538
- Surge protector in TXD/RXD signal line
- Rear I/O version is available for cPCI-3534R and cPCI-3538R
- Supports up to 2 cards per system, and multiple OS
- Rugged DB-37 connector for cPCI-3534, and DB-62 connector for cPCI-3538
|
|
|
