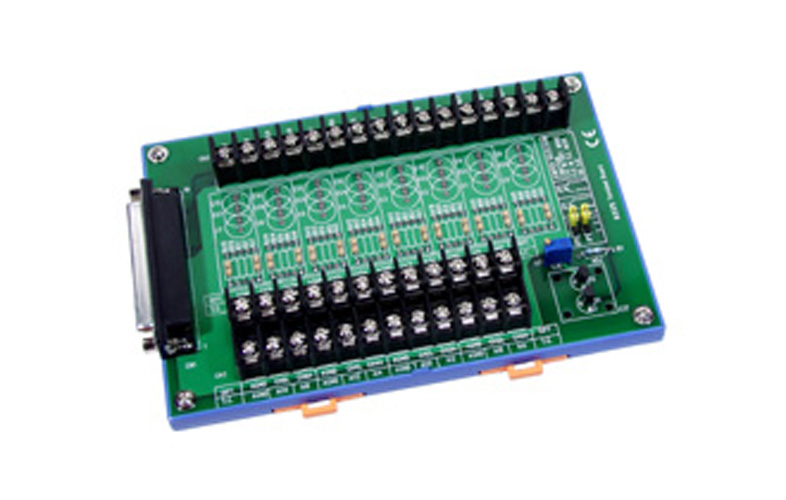

DB-8225/2 - Daughter Board for A-82X series,PCI-1800 with 2 meter D-Sub 37-pin cable
by ICP DAS

Daughter Board for A-82x Series, PCI-1800 with 1 M D-sub 37-pin Cable. Includes CA-3710(37-pin D-Sub Cable)

Screw terminal board
- using 37 pin cable I/O ports for A-82X series
- PCI-1800 series. (16 channel single-ended or 8 channel differential)
Blank pads
- for break detection
- low-pass filter
- current shut and voltage attenuation.
On board cold junction circuit in analog input channel 1
- jumper selectable single-ended
- differential mode
Dimensions :118mm x 174mm
