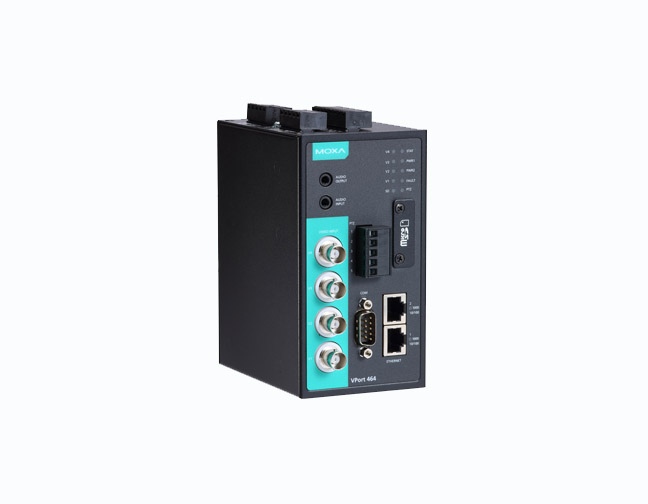

Memory |
microSD Slot |
SDXC |
Input/ Output Interface |
Digital Input Channels |
4 |
Digital Inputs |
+13 to +30 V for state 1
-30 to +1 V for state 0
Max. input current: 8 mA |
Relay Channels |
2 |
Contact Current Rating |
Resistive load: 1 A @ 24 VDC |
Connector |
Terminal block |
Ethernet Interface |
10/100BaseT(X) Ports (RJ45 connector) |
2 |
Ethernet Software Features |
Protocols |
TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, Modbus TCP, HTTPS, 802.1X, NTCIP |
Security Functions |
Password |
User-level password protection |
Filter |
IP address |
Authentication |
802.1X |
Encryption |
HTTPS |
LED Interface |
LED Indicators |
STAT: Indicates if system is booted up properly or not
Power 1: Power 1 on/off
Power 2: Power 2 on/off
FAULT: Can be configured to correspond to system alarm, power failure, or disconnected network
Video: Video input signal
PTZ: Indicates if PTZ or COM port data has been transmitted
SD: Indicates if SD card was mounted successfully
Network: 10 Mbps or 100 Mbps |
Serial Interface |
PTZ Port |
1, RS-232 or RS-422/485 port, terminal block connector, 115.2 kbps |
COM Port |
1, RS-232 or RS-485 port, DB9 male connector, 115.2 kbps |
Console Port |
1 RS-232 port, 10-pin RJ45 (115200, n, 8, 1) |
Power Parameters |
No. of Power Inputs |
2 |
Input Voltage |
Redundant dual inputs |
Operating Voltage |
12 to 32 VDC, 18 to 30 VAC |
Input Current |
0.5 A @ 24 VDC
0.83 A @ 24 VAC |
Power Connector |
2-pin terminal block |
Video Interface |
Video Compression |
H.264 (ISO/IEC 14496-10) or MJPEG |
Video Input |
4, BNC connector (1.0 Vpp, 75 ohm) |
Video Output |
via Ethernet |
Video Streams |
2 independent H.264 or MJPEG video streams
1 quad (4-channel images) stream |
NTSC/PAL |
Auto-sensing or manual |
Video Resolution and FPS (frames per second) |
Read more
|
Video Viewing |
DynaStream™ support for changing the video frame rate automatically
CBR Pro™ for good image quality in limited bandwidth transmissions
Adjustable image size and quality
Timestamp and text overlay
OSD (On Screen Display) position adjustable
Maximum of 5 simultaneous unicast connections, 50 multicast clients
Image tuning control: brightness, contrast, saturation, sharpness, noise reduction |
Audio Interface |
Audio Inputs |
1 Line-in or MIC-in with 3.5 mm phone jack |
Audio Outputs |
1 Line-out, with 3.5 mm phone jack |
Audio Format |
Mono, PCM (G.711) |
Camera Software Development |
VPort SDK PLUS |
Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers |
Video Standards |
ONVIF Profile S |
Camera PAN/TILT/ZOOM |
PTZ Camera Control |
Via PTZ port or COM port |
PTZ Control Functions |
Pan, tilt, zoom, focus, move speed, preset position (max. 128 positions) |
PTZ Function Updates |
Driver upload supported |
Protocols |
Pelco D, Pelco P, Custom Camera |
Camera Alarm Software Features |
Intelligent Video |
Camera tampering detection |
Video Motion Detection |
3 independently configurable areas |
Scheduling |
Daily repeat timing schedule |
Imaging |
JPEG snapshots for pre/trigger/post alarm images |
Custom Alarms |
HTTP event servers for setting customized alarm actions |
Email/FTP Messaging |
Automatic transfer of stored images via email or FTP as event-triggered actions |
Pre-Alarm Buffer |
50 MB video buffer for JPEG snapshot images |
Video Recording |
Event recordings stored on the SD card |
Software Requirements |
Memory Size |
1 GB |
Operating System |
Windows 7 or above |
Browser |
Internet Explorer 9.x or above |
Multimedia |
DirectX 9.0C or above |
Physical Characteristics |
Housing |
Metal |
Dimensions |
80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in) |
Weight |
1130 g (2.49 lb) |
Installation |
DIN-rail mounting, Wall mounting (with optional kit) |
Environmental Limits |
Operating Temperature |
Standard Models: -25 to 60°C (-13 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
Storage Temperature (package included) |
-40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity |
5 to 95% (non-condensing) |
Altitude |
2000 m |
Standards and Certifications |
EMI |
CISPR 32, FCC Part 15B Class A |
EMS |
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF |
Freefall |
IEC 60068-2-31 |
Safety |
UL 60950-1 |
Shock |
IEC 60068-2-27 |
Vibration |
IEC 60068-2-6 |
MTBF |
Time |
569,152 hrs |
Standards |
Telcordia SR332 |
