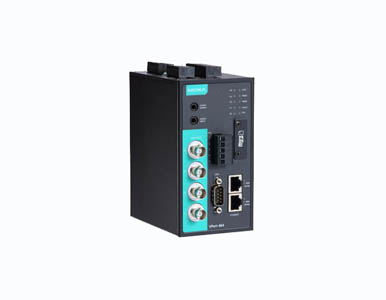

4-channel H.264/MJPEG Industrial Video Encoder, 2 10/100/1000BaseT(X) Ethernet port, -25 to 60  Degree C by MOXA

4-channel H.264/MJPEG Industrial Video Encoder, 2 10/100/1000BaseT(X) Ethernet port, -25 to 60 Degree C
by MOXA

Write a review Write a review
  • Each channel supports 2 D1 30 fps streams simultaneously, or merge 1 quad stream 30 fps image into 4 channels
  • Video latency under 200 ms
  • 2 Ethernet ports for cascading or Ethernet port redundancy
  • DynaStream™ for optimized network efficiency
  • ONVIF support for standardization and interoperability
  • Local storage capability with microSD card slot
  • Industrial design with -40 to 75°C operating temperature



Mfg SKU # : VPort 464
Our Price : $1,459.76
Stock : Call for Availability
Quantity :

The VPort 464 4-channel industrial video encoder uses the H.264 video compression algorithm to provide the best video quality on the market, but with a smaller bandwidth requirement than other video compression standards. In addition, to meet various requirements, each channel of the VPort 464 can support 2 video streams simultaneously or you can merge all 4 channels into 1 quad view stream using H.264 and MJPEG compression formats, providing greater flexibility for a variety of uses, including viewing, recording, and analysis. The rugged industrial design, which includes a -40 to 75°C operating temperature, IP30 protection, and industrial certifications, make the VPort 464 suitable for harsh environments.

The VPort 464 comes with two Gigabit Ethernet ports and supports cascade mode and network redundancy. In addition, Moxa’s innovative DynaStream™ technology lets you change the video frame rate automatically, allowing you to control your network bandwidth budget and simplify network system management. The CBR Pro™ function guarantees the lowest packet loss for limited bandwidth transmissions to ensure that images will not exhibit the mosaic effect.

Memory

microSD Slot

SDXC

Input/ Output Interface

Digital Input Channels

4

Digital Inputs

+13 to +30 V for state 1

-30 to +1 V for state 0

Max. input current: 8 mA

Relay Channels

2

Contact Current Rating

Resistive load: 1 A @ 24 VDC

Connector

Terminal block

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

2

Ethernet Software Features

Protocols

TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, Modbus TCP, HTTPS, 802.1X, NTCIP

Security Functions

Password

User-level password protection

Filter

IP address

Authentication

 802.1X

Encryption

HTTPS

LED Interface

LED Indicators

STAT: Indicates if system is booted up properly or not

Power 1: Power 1 on/off

Power 2: Power 2 on/off

FAULT: Can be configured to correspond to system alarm, power failure, or disconnected network

Video: Video input signal

PTZ: Indicates if PTZ or COM port data has been transmitted

SD: Indicates if SD card was mounted successfully

Network: 10 Mbps or 100 Mbps

Serial Interface

PTZ Port

1, RS-232 or RS-422/485 port, terminal block connector, 115.2 kbps

COM Port

1, RS-232 or RS-485 port, DB9 male connector, 115.2 kbps

Console Port

1 RS-232 port, 10-pin RJ45 (115200, n, 8, 1)

Power Parameters

No. of Power Inputs

2

Input Voltage

Redundant dual inputs

Operating Voltage

12 to 32 VDC, 18 to 30 VAC

Input Current

0.5 A @ 24 VDC

0.83 A @ 24 VAC

Power Connector

2-pin terminal block

Video Interface

Video Compression

H.264 (ISO/IEC 14496-10) or MJPEG

Video Input

4, BNC connector (1.0 Vpp, 75 ohm)

Video Output

via Ethernet

Video Streams

2 independent H.264 or MJPEG video streams

1 quad (4-channel images) stream

NTSC/PAL

Auto-sensing or manual

Video Resolution and FPS (frames per second)

Read more



Video Viewing

DynaStream™ support for changing the video frame rate automatically

CBR Pro™ for good image quality in limited bandwidth transmissions

Adjustable image size and quality

Timestamp and text overlay

OSD (On Screen Display) position adjustable

Maximum of 5 simultaneous unicast connections, 50 multicast clients

Image tuning control: brightness, contrast, saturation, sharpness, noise reduction

Audio Interface

Audio Inputs

1 Line-in or MIC-in with 3.5 mm phone jack

Audio Outputs

1 Line-out, with 3.5 mm phone jack

Audio Format

Mono, PCM (G.711)

Camera Software Development

VPort SDK PLUS

Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers

Video Standards

ONVIF Profile S

Camera PAN/TILT/ZOOM

PTZ Camera Control

Via PTZ port or COM port

PTZ Control Functions

Pan, tilt, zoom, focus, move speed, preset position (max. 128 positions)

PTZ Function Updates

Driver upload supported

Protocols

Pelco D, Pelco P, Custom Camera

Camera Alarm Software Features

Intelligent Video

Camera tampering detection

Video Motion Detection

3 independently configurable areas

Scheduling

Daily repeat timing schedule

Imaging

JPEG snapshots for pre/trigger/post alarm images

Custom Alarms

HTTP event servers for setting customized alarm actions

Email/FTP Messaging

Automatic transfer of stored images via email or FTP as event-triggered actions

Pre-Alarm Buffer

50 MB video buffer for JPEG snapshot images

Video Recording

Event recordings stored on the SD card

Software Requirements

Memory Size

1 GB

Operating System

Windows 7 or above

Browser

Internet Explorer 9.x or above

Multimedia

DirectX 9.0C or above

Physical Characteristics

Housing

Metal

Dimensions

80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)

Weight

1130 g (2.49 lb)

Installation

DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating Temperature

Standard Models: -25 to 60°C (-13 to 140°F)

Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Altitude

2000 m

Standards and Certifications

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m

IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV

IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV

IEC 61000-4-6 CS: 10 V

IEC 61000-4-8 PFMF

Freefall

IEC 60068-2-31

Safety

UL 60950-1

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6

MTBF

Time

569,152 hrs

Standards

Telcordia SR332
