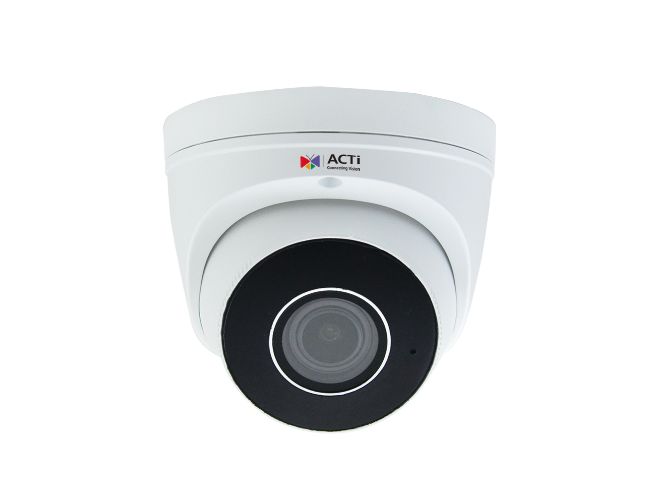

The Z87 is a 4MP Outdoor Zoom Dome with D/N, Adaptive IR, Superior WDR, SLLS, 4.3x Zoom lens, f2.8-12mm/F1.6 (HOV:99.8°-30.7°), Auto Focus (for installation), H.265/H.264, 2D+3D DNR, Built-in Microphone, MicroSDHC, PoE/DC12V, IP67.
Device
Product Type
Zoom Dome
Maximum Resolution
4MP
Application Environment
Outdoor
Image Sensor
Progressive Scan CMOS
Sensor Size
1/3 "
Day / Night
Yes
Low Light Sensitivity
Superior
Minimum Illumination
Color: 0.003 lux at F1.6 (AGC on); B/W: 0 (IR LED on)
Mechanical IR Cut Filter
Yes
IR LED
Adaptive IR LED x 2 (850 nm)
IR Working Distance
40m
Electronic Shutter
1-1/100000 second (manual mode); 1-1/100000 second (auto mode)
S/N Ratio
56 dB
Lens
Focal Length
Zoom, f2.8-12mm
Aperture
F1.6
Zoom Ratio
4.3x optical zoom
Focus
Auto focus
Horizontal Viewing Angle
99.8° - 30.7°
Vertical Viewing Angle
56° - 18.4°
Viewing Angle Adjustment
Pan: 0°-360°, Tilt: 0°-75°, Rotation: 0°-360°
Video
Compression
H.265, H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution
25 fps at 2688 x 1520 25 fps at 2560 x 1440 30 fps at 2304 x 1296 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 576 30 fps at 704 x 288 30 fps at 640 x 360 30 fps at 352 x 288
Multi-Streaming
Simultaneous dual streams
Wide Dynamic Range
Superior WDR (120 dB)
Image Enhancement
Defogging
Digital Noise Reduction
2D + 3D DNR
Privacy Mask
Yes
Text Overlay
Yes
Built-in Analytics
Tampering Detection, Intrusion Detection (Forbidden Area Detection), Object Line Crossing Detection
Image Orientation
Flip, Mirror, Rotation (Corridor mode)
Audio
Audio Type
1-way, Built-in Microphone
Audio Compression
G.711
Network
Ethernet Port
1 x Ethernet (10/100 Base-T), RJ-45 connector
Integration
ONVIF Compliant
Yes, Profile S, Profile G, Profile T
Interface
Local Storage
MicroSD Memory Card Slot (card not included, up to 256GB)
Operating Button
Reset Button
General
Power Source
DC 12V, PoE (IEEE802.3af)
Power Consumption
8 W (PoE)
Dimensions
(Ø x H): 129mm x 110mm (5.1" x 4.3")
Environmental Casing
Weatherproof (IP68), Vandal proof (IK10)
Operating Temperature
-30°C ~ 60°C (-22°F ~ 140°F)
Approvals
CE Class B, FCC Class B, IP68, IK10
Color
White
Real-time Clock (RTC)
No
Warranty
2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
