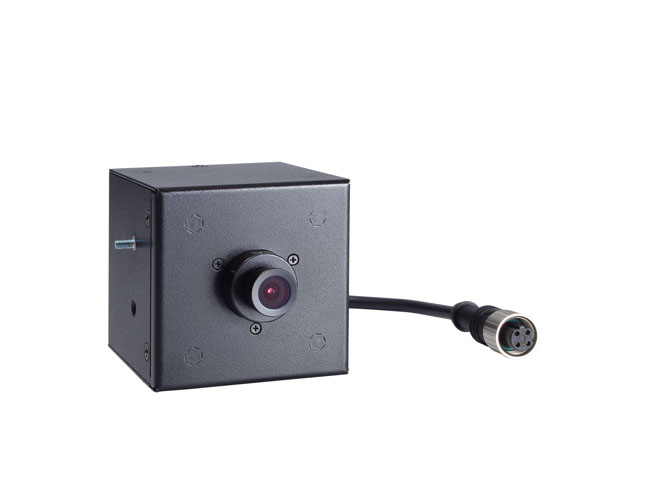

VPort P06HC-1V60M-CT - EN 50155, HD image, cubic IP camera, M12 connector, PoE, 6.0 mm lens, -40 to 55 degree C , conformal coat
by MOXA

The VPort P06HC-1V Series cubic IP cameras provide an HD (720P, 1280 x 720) video image, and feature 3 H.264 video streams, giving them the versatility and ruggedness to excel in many different installations and environments for IP video surveillance applications. In addition, the cameras comply with a portion of EN 50155 specifications, covering operating temperature, power input voltage, surge, ESD, and vibration, making them suitable for a variety of industrial applications. The cameras feature a -40 to 55C operating temperature, a rugged M12 Ethernet port, PoE power inputs, and a selectable lens.

Ethernet Interface

• PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

  • 1

Ethernet Software Features

• Protocols

  • TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS

Security Functions

• Password

  • User-level password protection

• Filter

  • IP address

• Encryption

  • HTTPS

Power Parameters

• No. of Power Inputs

  • 1

• Source of Input Power

  • PoE (IEEE 802.3af)

• Input Current

  • 0.17 A @ 48 VDC

Camera Characteristics

• Sensor

  • 1/2.7-in HD progressive scan CMOS

• Lens

  • f=2.8 mm, F2.0, Diagonal 126°, Horizontal 113°, Vertical 58°

• Minimum Illumination

  • Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)

• Synchronization

  • Internal

• White Balance

  • ATW/AWB

• Electronic Shutter

  • Auto (1/30 to 1/25000 sec)

• S/N Ratio

  • Maximum 50 dB (AGC off; DNR on)

• DNR (digital noise reduction)

  • Built-in DNR

• WDR (wide dynamic range)

  • 110 dB

• Flickerless Control

  • Automatic, 50 Hz, 60 Hz modes

• Image Rotation

  • Flip, Mirror, and 180° rotation

• Image Setting

  • Manual tuning with saturation, sharpness, and contrast

• AGC (auto gain control)

  • 2X, 4X, 8X, 16X, 32X, 64X

• BLC (back light compensation)

  • High/Medium/Low

Video Interface

• Video Compression

  • H.264 (ISO/IEC 14496-10) or MJPEG

• Video Output

  • via Ethernet

• Video Streams

  • 3 independent H.264 or MJPEG video streams

• Video Resolution and FPS (frames per second)

• Video Viewing

  • DynaStream™ support for changing the video frame rate automatically
    CBR Pro™ for good image quality in limited bandwidth transmissions
    3 privacy mask areas provided
    Adjustable image size and quality
    Timestamp and text overlay
    OSD (On Screen Display) position adjustable
    Maximum of 5 simultaneous unicast connections, 50 multicast clients

Camera Software Development

• Video Standards

  • ONVIF Profile S

Camera Alarm Software Features

• Intelligent Video

  • Camera tampering detection

• Video Motion Detection

  • 3 independently configurable areas

• Scheduling

  • Daily repeat timing schedule

• Imaging

  • JPEG snapshots for pre/trigger/post alarm images

• Custom Alarms

  • HTTP event servers for setting customized alarm actions

• FTP Messaging

  • Automatic transfer of stored images via FTP as event-triggered actions

Software Requirements

• Memory Size

  • 1 GB

• Operating System

  • Windows 7 or above

• Browser

  • Internet Explorer 9.x or above

• Multimedia

  • DirectX 9.0C or above

Physical Characteristics

• Housing

  • Metal

• Dimensions

  • 60 x 60 x 74.6 mm (2.36 x 2.36 x 2.94 in)

• Weight

  • 300 g (0.66 lb)

• Installation

  • Flush mounting

Environmental Limits

• Operating Temperature

  • -40 to 55°C (-40 to 131°F)

• Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

• Ambient Relative Humidity

  • 5 to 95% (non-condensing)

• Ingress Protection

  • IEC 60529, IP30 (provided screws are used to fill the camera housing screw holes)

• Altitude

  • 2000 m

Standards and Certifications

• EMI

  • CISPR 32, FCC Part 15B Class A

• EMS

  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Signal: 2 kV
    IEC 61000-4-5 Surge: Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

• Freefall

  • IEC 60068-2-31

• Railway Fire Protection

  • EN 45545-2

• Safety

  • UL 62368-1

• Shock

  • IEC 60068-2-27, IEC 61373, EN 50155

• Vibration

  • IEC 60068-2-64, IEC 61373, EN 50155

• Railway

  • EN 50155 (complies with a portion of EN 50155 specifications)

MTBF

• Time

  • 692,847 hrs

• Standards

  • IEC 62380
