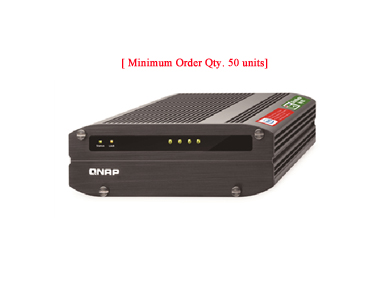

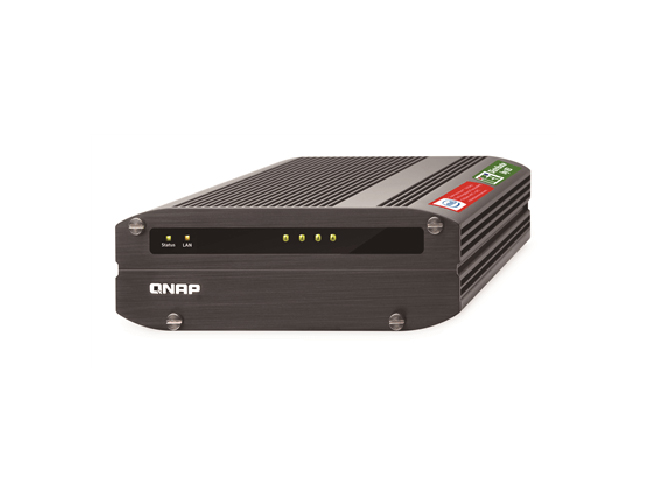

IS-453S - 4-bay Industrial NAS/NVR for Tough or Mobile Environments
by IEI
|
|
|
|
[ Minimum Order Qty.: 50 units ]
- Rugged design with high resistance to vibration and impact
- Dust-resistant and fanless design
- Wide operating temperature range: -40°C ~ 50°C (-40°F ~ 120°F)
- AES-NI hardware encryption acceleration
- Up to 221MB/s read and 214MB/s write speed with 2 Gigabit LAN ports
- Complete solutions for file sharing, backup, disaster recovery, and data security management
|
|
|
| The IS-453S is a robust all-in-one industrial NAS designed for reliable operations in harsh environments. Featuring a fanless design with high vibration and impact resistance, the IS-453S is ideal for factories, warehouses, and transportation with operating temperatures between -40°C and 50°C (-40°F to 122°F). The IS-453S delivers high performance with persistent throughput and provides a comprehensive storage solution.
|
Designed for a wide range of temperatures and environments |
| Built with high-quality aluminum materials for maximum heat dissipation, the IS-453S has been designed to operate perfectly in non-office environments. Withstanding temperatures between -40°C and 50°C (-40°F to 122°F)* it is the ideal choice for networked storage across a wide range of platforms such as factories & industrial settings, transportation and other environments that are exposed to the elements. |
 |
Rock-solid & fanless design |
 |
Engineered to perfection with a rugged body and no moving parts, the fanless IS-453S is designed to withstand dust, rust, vibration and impact for reliable and energy-saving operations within even the most extreme environments.
Compliant with the military-grade MIL-STD-810G-514.6E-1 simulation test for anti-vibration, the all-metal construction of the IS-453S can withstand shock impact while still providing continuous operation. |
Run additional operating systems on the IS-453S |
| The Virtualization Station transforms the IS-453S into a 2-in-a-box NAS that can function as an all-in-one NAS and a virtualization platform for hosting virtual machines (VMs), supporting multiple operating systems, fast VM creation, VM backup & restoration, VM import/export, snapshot, Device Management for centrally managing VM, and enables desktop operations on web browsers. Virtualization Station uses SDN (Software-defined Networks) and allows the IS-453S and VMs to share the same LAN port. No longer constrained by physical network performance, high-speed Virtual Switches greatly increases data transfer between VMs as well as between VMs and NAS through the internal interface. You can also download VMs on demand from online VM markets and import them to IS-453S without any complex procedures. |
 |
Disaster recovery solutions bring peace of mind |
| The IS-453S offers various data recovery options. RTRR (Real-Time Remote Replication) supports real time data backup to remote NAS or FTP servers and synchronizes files to remote folders from local folders with better backup efficiency and reduced backup time. The IS-453S also supports rsync protocol to back up data to remote servers on a scheduled basis. Data can also be backed up to and restored from a range of cloud storage services, including Amazon® S3, Amazon® Glacier, Microsoft® Azure, ElephantDrive®, Dropbox® and Google Cloud Storage™. |
 |
Comprehensive surveillance solution providing 24/7 security |
| Surveillance Station offers a professional surveillance solution with a user-friendly management interface, over 3,000 compatible IP camera models, and expandable IP camera channel licenses. It supports real-time monitoring, video and audio recording and playback with a wide range of customizable settings. You can also install the Vmobile app on your iOS® or Android™ devices to manage the monitored channels anytime and anywhere to safeguard your office environment, or install the Vcam mobile app to turn your device into a network camera to instantly record to your IS-453S. The IS-453S offers 4 free IP camera channels and you can expand up to 40 channels by purchasing additional licenses. |
 |
Signage Station –
Create outdoor ads promoting your business |
| With Signage Station, it's easy to create content for a wide range of materials such as menu boards, adverts, posters, and business profiles. As the IS-453S is designed for reliable operations in extreme environments (including a wide range of temperatures, dust, rust, and vibration) it is incredibly convenient to use Signage Station in outdoor environments to promote your business and services. |
 |
Container Station –
LXC and Docker® Containers inclusive |
| The IS-453S supports the game-changing container technology for server virtualization. QNAP Container Station exclusively integrates LXC and Docker® lightweight virtualization technologies, allowing you to operate multiple isolated Linux® systems on the IS-453S as well as download apps from the built-in Docker Hub Registry®. It supports container import/export and permission settings, and features an informative dashboard and flexible user interface for you to manage multiple containers. Container Station also supports the Online Document app*, which allows you to directly view, edit and store files of various types anytime on your NAS, including Office documents, images and text files. |
 |
Wide range 9V ~ 36V DC input |
 |
With the 9V-36V DC input design, the IS-453S is suitable for industrial and transportation applications with a variety of input voltage requirements. When the main power source (DC12V) is interrupted, the secondary 9-36V DC input becomes the backup power source to guarantee system continuity. |
Ordering P/N |
IS-453S-8G |
CPU |
22nm Intel® Atom™ quad-core 1.91GHz |
Floating Point Unit |
V |
Hardware Encryption |
V (AES-NI) |
GPU |
7th generation Intel® HD Graphics |
System Memory |
8GB (2 x 4GB) |
Memory Expandable Up To |
8GB |
Total Memory Slots |
2, SODIMM DDR3L-1333/1600 (For dual-DIMM configurations, you must use a pair of identical DDR3L modules.) |
Flash Memory |
512MB |
Hard Disk Drive |
4 x 2.5" SATA SSD/HDD, hot-swappable |
LAN Port |
2 x Gigabit RJ-45 Ethernet port |
USB Port |
2 x USB 3.0 port; 2 x USB 2.0 port |
Video Output |
1 x HDMI, up to 1080p support |
LED Indicators |
Status, USB, HDD 1-4 |
Buttons |
System: Power button, Reset button |
Other Interface |
Kensington security slot |
Alarm Buzzer |
System warning |
Form Factor |
Desktop; Wall-mount and din-rail mount support with optional accessories |
Dimensions |
59 (H) x 180 (W) x 247 (D) mm
2.32 (H) x 7.09 (W) x 9.72 (D) inch |
Weight |
Net weight: 1.11 kg (2.45 lbs)
Gross weight: 3.2 kg (7.05 lbs) |
Power Consumption |
HDD Sleep mode: 9.01 W
In Operation: 10.04 W
S3 sleep: 0.82 W |
Sound Level* |
Sound pressure (LpAm): 7.1 dB(A) |
Operating Temperature |
-40˚C ~ 50˚C (Please note: Industrial SSDs are required to meet this condition.) |
Humidity |
5~95% RH non-condensing, wet bulb: 27˚C |
Power |
Power 1: DC power jack, external power adaptor, 12V, 90W, Input: 100-240V
Power 2: 4-pin terminal block, 9-36V DC |
|
|
