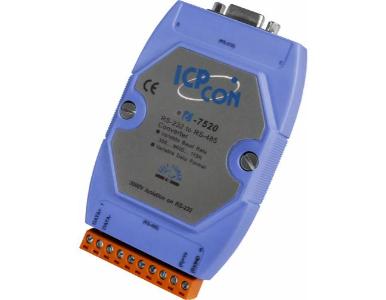

I-7520 - RS-232 to RS-485 converter with Din rail mount, auto tuning function, and auto switching baud rate. Supports maximum of
by ICP DAS
|
|
|
|
I-7520_SUMMARY.html
- Input : RS-232 protocol to female 9 pin connector
- Output : RS-485 protocol (two wire, D+, D-)
- Speed : auto switching baud rate, 300 ~ 115200 bps
- Internal "Self Tuner"
- Maximum of 256 modules. in a single RS-485 network without using a repeater
- Maximum of 2048 modules. in a single RS-485 network when using a repeater
- Isolation voltage: 3000Vdc on the RS-232 side
- Repeater request: 4,000 feet or over 256 modules
- Auto Switching Baud Rate, 300~115200 bps
- 3000 VDC Isolation Protection on the RS-485 side
- Transmission Speed of up to 115200 bps
- ESD Protection for the RS-232/422/485 Data Line
- Power Input of +10 ~ +30 VDC
- Supports Operating Temperatures from -25C ~ +75C
- Din Rail Mount
|
|
|
I-7520_DESCRIPTION.html
The I-7520 is an RS-232 to RS-485 Converter with auto tuning function, auto switching baud rate, and is made of fire retardant materials. Most industrial computer systems provide standard RS-232 serial ports. Though widely accepted, RS-232 has limited transmission speed, communication range, and networking capabilities. The RS-485 standard overcome these limitations by using differential voltage lines for data and control signals, which converts RS-232 signals into isolated RS-485 signals with no need to change any hardware or software. The I-7520 lets you easily build an industrial grade, long-distance communication system using standard PC hardware.
I-7520.html
|
Interface
|
|
Serial Interface
|
RS-232
|
TxD, RxD, GND
|
|
RS-485
|
Data+, Data-
|
|
2-wire cabling/4-wire cabling
|
Belden 8941 (2P twisted-pair cable)/Belden 8942 (4P twisted-pair cable), if different cables are
used, the transmission distance may change
|
|
Transfer Distance
|
Max. 1,200 m at 9.6 kbps; Max. 400 m at 115.2 kbps
|
|
Max. Devices Supported
|
256 (Without repeater)
|
|
Self-Tuner Asic Inside
|
Yes
|
|
Speed
|
300 ~ 115200 bps
|
|
ESD Protection
|
Yes
|
|
3000 VDC Isolated Voltage
|
On RS-232 side
|
|
Connection
|
RS-232
|
9-Pin Female D-Sub
|
|
RS-485
|
Removable 10-Pin Terminal Block
|
|
Input Voltage Range
|
+10 VDC ~ +30 VDC (Non-isolated)
|
|
Power Consumption
|
1.2 W
|
|
Casing
|
Plastic
|
|
Flammability
|
Fire Retardant Materials (UL94-V0 Level)
|
|
Dimensions (W x H x D)
|
72 mm x 118 mm x 35 mm
|
|
Installation
|
DIN-Rail
|
|
Operating Temperature
|
-25C ~ +75C
|
|
Storage Temperature
|
-30C ~ +75C
|
|
Humidity
|
10 ~ 90% RH, non-condensing
|
|
