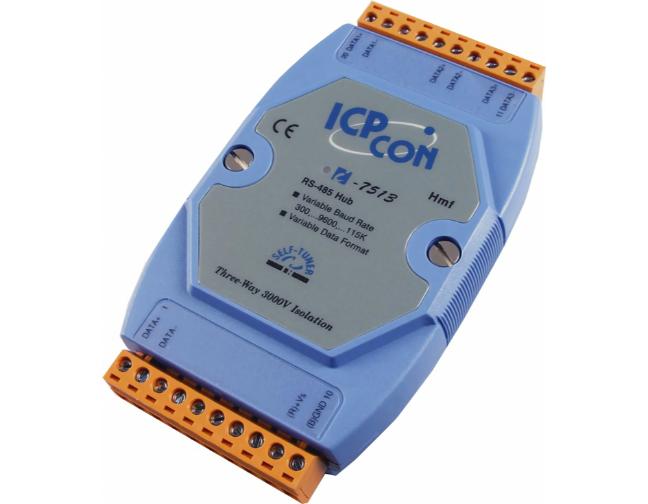

I-7513 - Three-Way Isolated RS-485 to 3-port RS-485 Hub. Expands RS-485 Network up to 4000 Feet (1200 Meters) by ICP DAS
|
|
|
I-7513_SUMMARY.html
- Industrial Isolated RS-485 hub
- Expands RS-485 Network to up to 4000 Feet (1.2km) by Splitting One RS-485 Network into Three
- Each channel on the hub has its own RS-485 driver.
- Better Protection: 3000V DC Isolation on Each of the Three RS-485 Channels
- Input (Master): 1 RS-485 Channel: Data+, Data-
- Output (Slave): 3 RS-485 Channels: Data+, Data-
- Fast Speed: Built-in Self Tuner, Supports Speed up to 115200 bps
- Auto Switching Baud Rate, Plug and Play, Easy-to-use
- No Software or Flow Control Required.
- No DIP Switch or Jumper Settings Needed.
- Easy to install: Din rail mount and plug-in screw terminal block connector
- External Power Input: +10V DC ~ +30V DC
- Low Power Consumption: 2.2W (Maximum)
- Operating temperature: -13F to 167F (-25C to 75C).
- Surface Mount Technology manufactured to RoHS and ISO-9001 standards.
|
|
|
I-7513_DESCRIPTION.html
The I-7513 is an industrial isolated RS-485 hub with three-way active star wiring. It can be used to expand RS-485 network by splitting one RS-485 network into three, as well as increase the maximum distance of a RS-485 up to 4000 feet (1.2km) and increase the maximum number of nodes. The unit has 3 independent RS-485 output channels - each of the channel comes with their own driver to transmit signals. The I-7513 can work as both a hub and repeater. Each output channel can be connected to another hub. It features 3000 VDC isolation protection and ESD protection, which helps effectively protect your system. The I-7513 RS-485 hub ensures fast data transmission - it supports up to 115.2k baud rate and features data auto-switching and a built-in self-tuner. It is an easy-to-use plug-and-play RS-485 hub that doesn't require manual settings, software drivers or flow control. It can be easily mounted on a din rail.
I-7513.html
Interface |
Input (Master) |
1 RS-485 Channel: Data+, Data- |
Output (Slave) |
3 RS-485 Channels: Data+, Data- |
Transfer Distance |
Max. 1,200 meters at 9.6 kbps; Max. 400 meters at 115.2
kbps (Belden 9841 2P twisted-pair cable, if different cables are used, the transmission distance
may change) |
Self-Tuner Asic Inside |
Yes |
Speed |
300 ~ 115200 bps |
ESD Protection |
Yes |
3000 VDC Three Way Isolated Protection
|
Yes |
Connection |
Removable 10-Pin Terminal Block x 2 |
LED Indicators |
Power/Communication |
Yes |
Power |
Input Voltage Range |
+10 VDC ~ +30 VDC
(Non-isolated) |
Power Consumption |
2.16 W |
Mechanical |
Casing |
Plastic |
Flammability |
Fire Retardant Materials (UL94-V0
Level) |
Dimensions (W x H x D) |
72 mm x 122 mm x 35 mm |
Installation |
DIN-Rail |
Environment |
Operating Temperature |
-25 ~ +75 C |
Storage Temperature |
-30 ~ +80 C |
Humidity |
10 ~ 90% RH, non-condensing |
|
