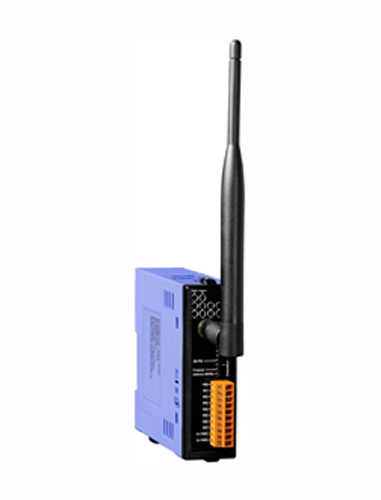

ICP DAS ZT-2052 - 8 Channel Isolated DI
by ICP DAS
|
|
|
|
Wireless 8-channel Isolated Digital Input Module with 16-bit Counters, 8 LED indicators. Supports Modbus RTU protocol. Operating temperatures of -25°C ~ +75°C (-13°F ~ +167°F)
|
|
|
- SM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
- Wireless Transmission Range up to 700 m
- GUI Configuration Software (Windows Version)
- 8 Wet Contact Digital Input Channels
- Supports 16-bit Counters for Digital Input Channels
- Surge and ESD Protection
- DIN-Rail Mountable
The ZT-2052 offers 8 digital input channels, each of which features photocouple isolation. You can choose sink-type or sourcetype inputs through wire connections. All channels are able to be used as 16-bit counters. The ZT-2052 has 8 LED indicators to display the channel status, includes a 4 kV ESD protection, and 3000 VDC intra-module isolation. Users can easily configure the module address, protocol, checksum, ZB-PID and ZB-channel settings using a combination of rotary and DIP switches.
Specifications
| Communication Interface |
| Wireless Standards |
ZigBee, IEEE 802.15.4 |
| Transmission Power |
11dBm |
| 2.4 GHz Antenna |
5 dBi Omni directional |
| Transmission Range (LoS) |
700 m (Typical) 1 km (Max) |
| Certification |
- |
| Max. Slaves in ZigBee Network |
255 |
| Protocols |
Supports DCON and Modbus RTU Protocols |
| How Swap |
Rotary and DIP switch |
| LED Indicators |
| Power |
1 LED, Red |
|
| ZigBee Communications |
1 LED, Green |
| Digital Input |
8 LEDs, Green |
| Power |
| Power Consumption |
1 W Max. |
| Mechanical |
| Flammability |
Fire Retardant Materials (UL94-V0 Level) |
| Dimensions (W x L x H) |
33 mm x 87 mm x 110mm |
| Installation |
DIN-Rail |
| Power |
| Operating Temperature |
-25 ~ +75°C (-13°F ~ +167°F) |
| Storage Temperature |
-30 ~ +80°C (-22°F ~ +176°F) |
| Relativel Humidity |
10 ~ 90% RH, Non-condensing |
I/O Specifications
| Digital Input/Counter |
| Input Channels |
8 |
| Input Types |
Source |
| Sink/Source |
| Wet Contact |
|
On Voltage Level: +3.5 VDC ~ +30 VDC |
| |
Off Voltage Level: +1 VDC Max. |
| Dry Contact (Sink) |
On Voltage Level: Close to GND |
| Off Voltage Level: Open |
| Effective Distance for Dry Contact: 500 m Max. |
| Counter |
Channels: 8 |
| Max. Count: 16-bit (65535) |
| Max. Input Frequency: 100 Hz |
| Min. Pulse Width: 5 ms |
| Intra-module Isolation, Field to Logic |
3750 Vrms |
| Impedence |
3 kΩ, 0.33 W |
|
|
