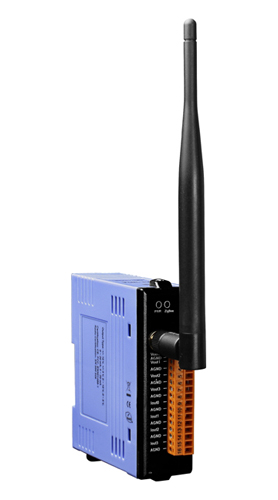

ICP DAS ZT-2024 - 4 Channel Long Range Voltage / Current Outputs
by ICP DAS
|
|
|
|
Wireless Zigbee Alliance 4-channel Long Range Voltage/Current Output Module, supports RS-485, RS-232, Ethernet protocols, Modbus RTU, supports operating temperatures from -25°C ~ +75°C (-13°F ~ 167°F), communication distance up to 700 meters.
|
|
|
The ZT-2024 is a 12-bit, 4-channel analog output wireless ZigBee module that provides a programmable output range an all channels, including 0 ~ +10 VDC, -10 VDC ~ +10 VDC, 0 ~ +5 VDC, -5 VDC ~ +5 VDC, 0 ~ +20 mA or +4 mA ~ +20 mA. There are also options for configuring the power-on value and the safe value. The module address, protocol, checksum, ZT-PID, ZT-channel and type code settings can be easily configured settings using a combination of rotary and DIP switches.
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4G/ZigBee Specifications
- Wireless Transmission Range up to 700 m
- GUI Configuration Software (Windows Version)
- 4 Analog Output Channels (V, mA)
- EFT and ESD Protection
- Configurable Power-on Value Settings
- Configurable Safe Value Settings
- DIN-Rail Mounting
Specifications
| Communication Interface |
| Wireless Standards |
ZigBee 2007 Pro |
| Transmission Power |
11 dBm(FCC Certificated) ( Max 19 dBm) |
| 2.4 GHz Antenna |
5 dBi Omni directional |
| Transmission Range (LoS) |
700 m (Typical) |
| Certification |
CE/FCC, FCC ID |
| Max. Slaves in a ZigBee Network |
255 |
| ZB-100R/ZB-100T Support |
- |
| Protocols |
Supports DCON and Modbus RTU Protocols |
| Dual Watchdog |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| Hot Swap |
Rotary and DIP switch |
| Mount |
DIN Rail Mount |
| LED Indicators |
| Power |
1 LED, red |
| ZigBee Communication |
1 LED, green |
| Power |
| Power Consumption |
2.2 W Max. |
| Mechanical |
| Flammability |
Fire Retardant Materials (UL94-V0 Level) |
| Dimensions (W x L x H) |
33 mm x 87 mm x 107 mm |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-30 °C ~ +80 °C |
| Relative Humidity |
10 ~ 90% RH, Non-condensing |
I/O Specifications
| Analog Output |
| Output Types |
0 ~ +10 VDC, -10 VDC ~ +10 VDC, 0 ~ +5 VDC, -5 VDC ~ +5 VDC, 0 ~ +20 mA, +4 mA ~ +20 mA |
| Resolution |
12-bit |
| Accuracy |
+/-0.1% of FSR |
| Zero Drift |
+/-30 μV/°C |
| Span Drift |
+/-25 ppm/°C |
| Programmable Output Slope |
0.125 to 2048 mA/ second |
| 0.0625 to 1024 V/ second |
| Voltage Output Capability |
10 V @ 10 mA |
| Current Load Resistance |
External +24 V power : 1050 Ω |
| Intra-module Isolation, Field-to-Logic |
2500 VDC |
| ESD Protection |
+/-4 kV contact for each channel |
| Power-on Value |
Yes |
| Safe Value |
Yes |
|
|
