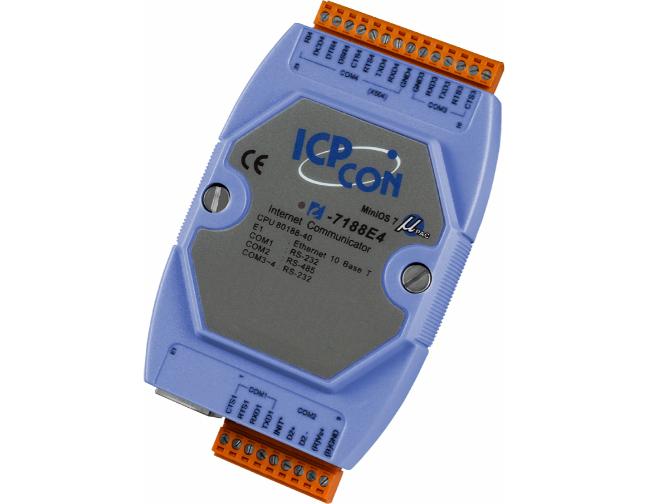

I-7188E4 - 4 Serial Ports to Ethernet Converter / Intelligent Controller with 40 Mhz CPU, without display.
by ICP DAS
|
|
|
|
I-7188E4_SUMMARY.html
- AMD 80188-40 Embedded CPU, or compatible
- Supports a variety of TCP/IP features, including TCP, UDP, IP, ICMP, ARP
- 10BASE-T NE2000 compatible Ethernet Controller
- Reloadable Operating Software
- Remote Configuration
- Diagnostics
- COM driver support interrupt & 1K QUEUE Input & Output
- Support serial port
- Built-in EEPROM
- Built-in self-tuner ASIC controller on RS-485 port
- support three RS-232 ports and one RS-485 port
- 7-segment LED display for I-7188E4D
- Built-in MiniOS7
- Program download port: COM1 or Ethernet Port
|
|
|
I-7188E4_DESCRIPTION.html
The I-7188E4 product, OEM or ODM version is welcomed. Can be used as Addressable Ethernet to RS-232/485/422 Converter.
I-7188E4.html
| CPU | | CPU | 80188, 40MHz or compatible | | SRAM | 384K bytes | | Flash Memory | 512K bytes | | EEPROM | 2K Bytes | | Built-in Watchdog Timer | Yes | | Communication Interface | | COM1 | RS-232 (TXD, RXD, RTS, CTS, GND) | | COM2 | RS-485 (D2+, D2-) | | COM3 | RS-232 (TXD, RXD, RTS, CTS, GND) | | COM4 | RS-232 (TXD, RXD, RTS, CTS, GND, DCD, DTR, DSR, RI) | | Ethernet Port | 10BASE-T NE2000 compatible Ethernet Controller | | COM Port Formats | | Data bit | 7, 8 | | Parity | Even, Odd, None | | Stop bit | 1 | | Baud Rate | 115200 bps Max. | | LED Display | | 5-Digit 7 Segment LED Display | Yes (for I-7188E4D only) | | System LED Indicator | Yes | | Dimensions | | I-7188E4(D) | 123mm x 72mm x 33mm | | Operating Environment | | Operating Temperature | -25C to +75C | | Storage Temperature | -40C to +80C | | Power | | Protection | Power reverse polarity protection | | Required Supply Voltage | +10 to +30V/DC (non-regulated) | | Power consumption | 2W for I-7188E4
3W for I-7188E4D |
|
