I-2533T-FD - CAN/CAN FD to Multi-mode Fiber Bridge

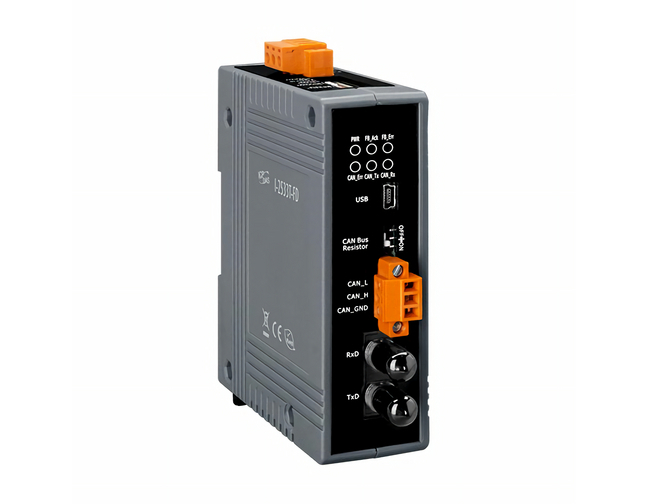

ICP DAS I-2533T-FD - CAN/CAN FD to Multi-mode Fiber Bridge; 1 (2 km) multi-mode, ST connector (RoHS)
by ICP DAS

I-2533T-FD_SUMMARY.html The I-2533T-FD is a local CAN/CAN FD (CAN with Flexible Data-Rate) bridge used to establish a connection between two CAN bus system via multi-mode fiber optic transmission medium.

Description
Specification
Datasheet

I-2533T-FD_DESCRIPTION.html The I-2533T-FD is a local CAN/CAN FD (CAN with Flexible Data-Rate) bridge used to establish a connection between two CAN bus system via multi-mode fiber optic transmission medium. In order to solve the problem between CAN/CAN FD and fiber transmission medium. The I-2533T-FD is specially designed for converting the electrical CAN/CAN FD bus signal to fiber optic cables. Besides, I-2533T-FD has three more important features. First, the transmission distance limitation of the CAN bus system will not affected due to the different CAN/CAN FD baud rate. It means that the total CAN/CAN FD bus working distance can be extended. Second, the bus error on one CAN/CAN FD network will not affect the operation of another CAN/CAN FD network. Finally, the two CAN/CAN FD network can communication with each other by using different CAN/CAN FD baud rate for highly flexibility.

I-2533T-FD.html

LED Indicators
Status	1 x Power 3 x CAN status 2 x Fiber status

Fiber
Ports	Multi-Mode; ST Duplex connector x 1; 100 Base-FX
Fiber Cable	50/125, 62.5/125 or 100/140 µm
Wavelength	1310 nm
TX Output	-20 dBm Min. , -14 dBm Max.
RX Sensitivity	-32 dBm Max.
RX Overload	-8 dBm Max.
Budget	12 dBm
Propagation Delay	190 us (*Note1)
Distance Between Stations	2 km (62.5/125 µm recommended)

CAN
Ports	1
Baud Rate	CAN bit rates: 10 k ~ 1 M bps, CAN FD bit rates for data field: 100 k ~ 10M bps (*Note2)
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for photocoupler
Terminal Resistor	Switch for 120O terminal resistor
Specification	ISO 11898-2, CAN 2.0 A/B and FD
Filter	Yes
