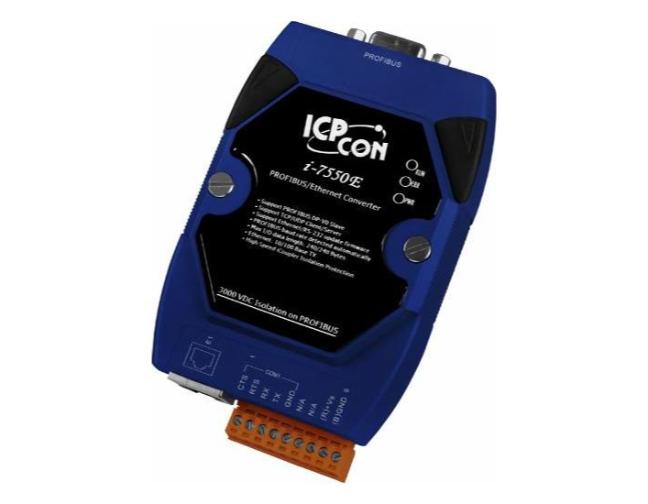

I-7550E - PROFIBUS to 10/100 Ethernet Converter.
Configurable over a Web Page and allows a PROFIBUS Master Device to access Et
by ICP DAS
|
|
|
|
I-7550E_SUMMARY.html
- DP-V0 Slave
- Transmission Rate (kbps) 9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000
- Automatically sets transmission rates
- Max Input/Output of Data is 240Bytes
- Web Configuration
- 10/100 Base-TX
- 2500 Vrms Network Isolation Protection
- 3000 VDC DC Protection Isolation Protection on PROFIBUS side
|
|
|
I-7550E_DESCRIPTION.html
The I-7550E Converter is specially designed for the slave device of PROFIBUS DP protocol. It allows the PROFIBUS master to access any kinds of Ethernet devices supporting TCP/UDP protocol. The I-7550E can be set as TCP/UDP server and client, it's flexible for user to match their requirement. In addition, the I-7550E module built-in web server, the user can set the module by web browser. By using this module, users can put their Ethernet devices into PROFIBUS network very easily.
I-7550E.html
| Hardware | | CPU | 80186, 80 MHz or compatible | | SRAM/Flash/EEPROM | 512 KB / 512 KB / 16 KB | | Watchdog | Watchdog IC
CPU built-in | | ESD Protection | 4 kV class A | | PROFIBUS Interface | | Controller | Profichip VPC3+C | | Transceiver | ADI ADM2486 | | Connector | 9-pin female D-Sub | | Baud Rate (bps) | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M | | Transmission Distance (m) | Depend on baud rate (for example, max. 1200 m at 9.6 kbps ) | | Isolation | 3000 VDCfor DC-to-DC, 2500 Vrms for bus-to-logic | | Protocol | DP-V0 | | UART Interface | | COM | RS-232 (For updating firmware) | | COM Connector | 5-pin screwed terminal block (TxD, RxD, RTS, CTS, GND ) | | Baud Rate (bps) | 115200 | | Data bit | 8 | | Stop bit | 1 | | Parity | None | | Ethernet Interface | | Controller | 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX) | | Counter | RJ-45 with LED indicator | | LED | | Round LED | PWR LED, RUN LED, ERR LED | | Power | | Power supply | Unregulated +10 ~ +30 VDC | | Protection | Power reverse polarity protection, Over-voltage brown-out protection | | Power Consumption | 2.5 W | | Mechanism | | Installation | DIN-Rail | | Dimensions | 72 mm x 33 mm x 119 mm (W x L x H) | | Environment | | Operating Temp. | -25C ~ 75C (-13F ~ +167F) | | Storage Temp. | -30C ~ +85C (-22F ~ +176F) | | Humidity | 5 ~ 95% RH, non-condensing |
|
