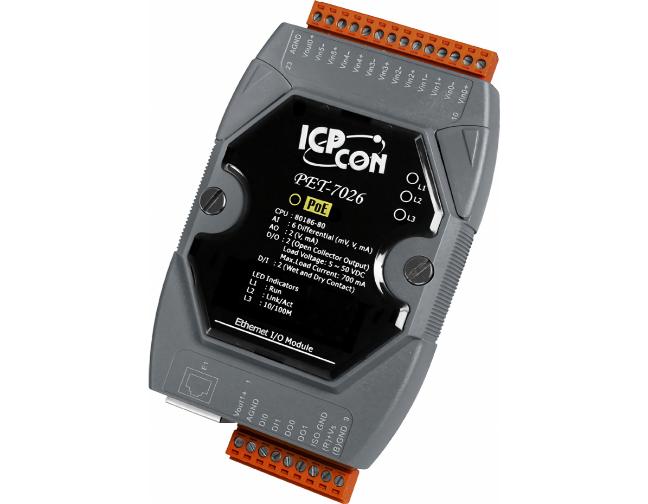

PET-7026-48 - 6-channel Data Acquisition Voltage Input, Current Input, Analog Input, 2-channel Analog Output, 2-channel Digital
by ICP DAS
|
|
|
|
PET-7026-48_SUMMARY.html
- Built-in Web Server
- Communication Security
- 2-way Isolated Noise/Surge Protection
- Modbus/TCP Protocol
- Built-in Dual Watchdog
- 10/100 Base-TX Ethernet
- I/O Pair Connection
- AI: 6 (mV, V, mA)
- AO: 2 (V, mA)
- DO: 2 (Open Collector Output)
- DI: 2 (Dry+Wet)
|
|
|
PET-7026-48_DESCRIPTION.html
PET-7026-48 - 6-channel Data Acquisition Voltage Input, Current Input, Analog Input, 2-channel Analog Output, 2-channel Digital Input (32-bit Counters) And 2-channel Digital Output PoE Current Module, communicable and Powered over Ethernet and Modbus TCP Protocol.
PET-7026-48.html
| Software |
| Built-in Web Server |
Yes |
| Web HMI |
Yes |
| I/O Pair Connection |
Yes |
| Communication |
| Ethernet Port |
1 x RJ-45, 10/100 Base-TX |
| PoE |
Yes |
| Protocol |
Modbus TCP, Modbus UDP |
| Security |
ID, Password and IP Filter |
| Dual Watchdog |
Yes, Module (0.8 seconds), Communication (Programmable)
|
| LED Indicators |
| for System Runining |
Yes |
| for Ethernet Link/Act |
Yes |
| for DI/DO status |
- |
| for PoE Power |
Yes |
| 2-Way Isolation |
| Ethernet |
- |
| I/O |
2500 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal and ±8 kV
Air for Random Point |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line Line |
| Surge (IEC 61000-4-5) |
±0.5 kV for Power Line |
| Power |
| Reverse Polarity Protection
|
Yes |
| Powered from Terminal Block
|
12 ~ 48 VDC |
| Power from PoE |
Yes, IEEE 802.3af, Class1 |
| Consumption |
3.9 W (Max.) |
| Mechnical |
| Dimensions (L x W x H) |
123 mm x 72 mm x 35 mm |
| Installation |
DIN-Rail or Wall Mounting |
| Environment |
| Operating Temperature |
-25C ~ +75C (-13F ~ +167F) |
| Storage Temperature |
-30C ~ +80C (-22F ~ +176F) |
| Humidity |
12 - 48VDC |
| Analog Input |
| Channels |
6 (Differential) |
| Type |
+/-500 mV, +/-1 V, +/-5 V, +/-10 V +0 mA ~ +20 mA, +/-20
mA, 4 ~ 20 mA (Jumper Selectable) |
| Individual Channel
Configuration |
Yes |
| Resolution |
16-bit |
| Sampling Rate |
Normal Mode |
10 Samples/Second (Total) |
| Fast Mode |
50 Samples/Second (Total) |
| Accuracy |
Normal Mode |
+/-0.1% |
| Fast Mode |
+/-0.5% or better |
| Zero Drift |
+/-20 µV/C |
| Span Drift |
+/-25 ppm/C |
| Overvoltage Protection |
240 Vrm |
| Overcurrent Protection |
50 mA Max. at 110 VDC/VAC Max |
| Common Voltage Protection
|
±200 VDC |
| Overcurent Protection |
Yes, 50 mA at 110 VDC |
| Virtual Channel to Channel
Isolation |
Yes |
| Input Impedence |
Voltage |
2 MO |
| Current |
125 O |
| Common Mode Rejection |
86 dB Min. |
| Normal Mode Rejection |
100 dB |
| Analog Output |
| Channels |
2 |
| Type |
+0 VDC ~ +5 VDC, +/-5 VDC, +0 VDC ~ +10 VDC, +/-10 VDC,+0
mA ~ +20 mA, +4 mA ~ +20 mA (Jumper Selectable) |
| Individual Chanel
Configuration |
Yes |
| Resolution |
12-bit |
| Accuracy |
+/-0.1% of FSR |
| Voltage Output Capability
|
20 mA @ 10 V |
| Current Load Resistance |
500 O |
| Open Wire Detection |
Yes, for 4 ~ 20 mA only |
| Power-on Value |
Yes, Programmable |
| Safe Value |
Yes, Programmable |
| Digital Input/Counter
|
| Channels |
2 |
| Dry Contact (Source) |
On Voltage Level |
Close to GND |
| Off Voltage Level |
Open |
| Effective Distance for Dry Contact |
500 M Max. |
| Wet Conact (Sink Source)
|
On Voltage Level |
+1 VDC Max |
| Off Voltage Level |
+3.5 VDC ~ +30 VDC |
| Input Impedence |
- |
| Counters |
Channels |
2 |
| Max. Count |
4,294,967,295 (32-bit) |
| Max. Input Frequency |
100 Hz |
| Min. Pulse Width |
5 ms |
| Overvoltage Protection |
30 VDC |
| Digital Output |
| Channels |
2 |
| Type |
Isolated Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Max. Load Current |
700 mA/Channel |
| Load Voltage |
+5 VDC ~ +50 VDC |
| Overvoltage Protection |
60 VDC |
| Overload Protection |
1.4 A |
| Short-circuit Protection
|
Yes |
| Power-on value |
Yes, Programmable |
| Safe Value |
Yes, Programmable |
|
