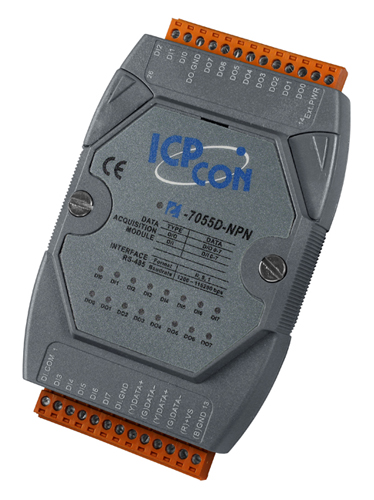

ICP DAS I-7055D-NPN - I-7055-NPN with display
by ICP DAS
|
|
|
|
RS-485 data acquisition module with 8-channel Isolated Digital Input (Counter) and 8-channel Isolated Digital Output. Supports operating temperature of -25°C ~ +75°C (-13°F ~ +167°F)
|
|
|

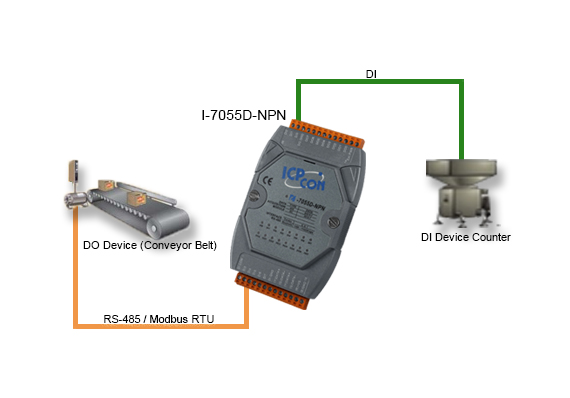

The I-7055D-NPN offers 8 isolated channels for digital input and 8 isolated channels for digital output. Either sink-type or source-type digital input can be selected via wire connections. All digital input channels are also able to be used as 16-bit counters. The I-7055D-NPN supports source-type output with short circuit protection. There are options to enable both power-on and safe values. The I-7055D-NPN has 16 LED indicators that can be used to monitor the status of the digital input and digital output channels. 4 kV ESD protection and 3750 VDC intra-module isolation are standard. I-7055D-NPN provides additional support for the Modbus RTU protocol as well as the DCON protocol.
- Sink-type Digital Output Channels with Overload Protection
- All Digital Input Channels can be used as 16-bit Counters
- Short Circuit Protection
- 4 kV ESD Protection
- 3750 VDC Intra-module Isolation
- Configurable Power-on Value Settings
- Configurable Safe Value Settings
- Wide Operating Temperature Range: -25°C~ +75°C (-13°F ~ +167°F)
| Communication |
| Interface |
RS-485 |
| RS-485 Bias Resistor |
No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.) |
| Format |
N, 8, 1 |
| Baud Rate |
1200 ~ 115200 bps |
| Protocol |
DCON (for I-7055 series) |
| Modbus RTU, DCON (for M-7055 series) |
| Dual Watchdog |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| LED Indicator/Display |
| System LED Indicator |
8, Sink(NPN) |
| I/O LED Indicator |
Yes, 8 LEDs as Digital Input
& 8 LED as Digital Output Indicators |
| 7-Segment LED Display |
- |
| Isolation |
| Intra-Module Isolation, Field-to-Logic |
3750 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal |
| ±8 kV Air for Random Point |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| Surge (IEC 61000-4-5) |
±3 kV for Power Line |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
10 ~ 30 VDC |
| Consumption |
2.2 W |
| Mechanical |
| Dimensions (W x L x H) |
72 mm x 123 mm x 35 mm |
| Installation |
DIN-Rail or Wall Mounting |
| Environment |
| Operating Temperature |
-25°C ~ +75°C (-13°F ~ +167°F) |
| Storage Temperature |
-40°C ~ +85°C (-40°F ~ +185°F) |
| Humidity |
10 ~ 95% RH, Non-condensing |
| Digital Input/Counter |
| Channels |
8 |
| Type |
Dry Contact |
Source |
| Wet Contact |
Sink/Source |
| Wet Contact |
On Voltage Level |
+10 ~ 50 VDC |
| Off Voltage Level |
+4 VDC Max. |
| Dry Contact |
On Voltage Level |
Close to GND |
| Off Voltage Level |
Open |
Effective Distance
for Dry Contact |
500 m Max. |
| Counters |
Max. Count |
65535 (16-bit) |
| Max. Input Frequency |
100 Hz |
| Min. Pulse Width |
5 ms |
| Input Impedence |
10 KΩ |
| Channel-to-Channel Isolation |
- |
| Overvoltage Protection |
±70 VDC |
| Digital Output |
| Channels |
8 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+3.5 ~ 50 VDC |
| Max. Load Current |
700 mA/Channel |
| Overvoltage Protection |
60 VDC |
| Overload Protection |
1.4 A (with short-circuit protection) |
| Power-on Value |
Yes |
| Safe Value |
Yes |
| Isolation |
| Intra-Module Isolation, Field-to-Logic |
3750 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal |
| ±8 kV Air for Random Point |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| Surge (IEC 61000-4-5) |
±3 kV for Power Line |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
10 ~ 30 VDC |
| Consumption |
2.2 W |
| Mechanical |
| Dimensions (W x L x H) |
72 mm x 123 mm x 35 mm |
| Installation |
DIN-Rail or Wall Mounting |
| Environment |
| Operating Temperature |
-25°C ~ +75°C (-13°F ~ +167°F) |
| Storage Temperature |
-40°C ~ +85°C (-40°F ~ +185°F) |
| Humidity |
10 ~ 95% RH, Non-condensing |
|
|
|
|
