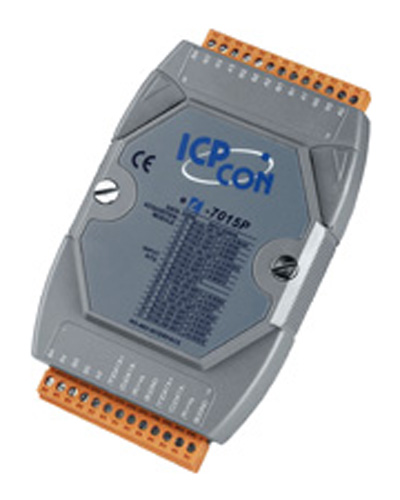

I-7015P - 6 channels of RTD module, Enhanced Version
by ICP DAS
|
|
|
|
6-channel RTD Analog Input Data Acquisition Module with 3-wire RTD lead resistance elimination communicable over RS-485. Supports operating temperatures between -25°C to +75°C (-13°F ~ +167°F).
|
|
|
The I-7015P device is designed for temperature measurement plus wide connection with 6 input channels. In order to reduce the signal collapse, we develops auto-compensation to double the delivering distance. I-7015P supports several kinds of RTD, has passed 4000V ESD protection and fits in with all kinds of rough industrial environment.
| Analog Input |
| Input Channels |
6 |
| Input Type |
RTD |
| Wire connection |
2/3 wire |
| RTD Type |
Pt100, Pt1000, Ni120, Cu100, Cu1000 |
| Resolution |
16-bit |
| Sampling Rate |
12 samples/ second (Total) |
| Accuracy |
+/-0.05% |
| -3dB BandWidth |
15.7Hz |
| Zero drift |
+/-0.5μV/°C |
| Span drift |
+/-20μV/°C |
| Common Mode Rejection |
150 dB |
| Normal Mode Rejection |
100 dB |
| Voltage Input Impedance |
>1M Ohms |
| Open Wire Detection |
Yes |
| Individual Channel Configurable |
Yes |
| 3-wire RTD lead resistance elimination |
Yes |
| ESD Protection |
4KV Contact for each terminal, and 8KV Air for random point |
| EFT Protection |
4KV to Power, and 1KV to RS-485 |
| Intra-module Isolation, Field to Logic |
3000 VDC |
| Interface |
| Interface |
RS-485 |
| Format |
N, 8, 1 |
| Baud Rate |
1200 ~ 115200bps |
| LED Display |
| 1 LED |
as Power/ Communication indicator |
| Power |
| Input |
+10 to +30 Vdc |
| Power Consumption |
1.2W |
| Environment |
| Operating temperature |
-25 to 75°C |
| Storage temperature |
-40 to 85°C |
| Humidity |
5 to 95%, non-condensing |
| Type Code |
RTD Type |
Temperature Range °C |
| 20 |
Platinum 100, α= 0.00385 |
-100 ~ 100 |
| 21 |
Platinum 100, α= 0.00385 |
0 ~ 100 |
| 22 |
Platinum 100, α= 0.00385 |
0 ~ 200 |
| 23 |
Platinum 100, α= 0.00385 |
0 ~ 600 |
| 24 |
Platinum 100, α= 0.003916 |
-100 ~ 100 |
| 25 |
Platinum 100, α= 0.003916 |
0 ~ 100 |
| 26 |
Platinum 100, α= 0.003916 |
0 ~ 200 |
| 27 |
Platinum 100, α= 0.003916 |
0 ~ 600 |
| 28 |
Nickel 120 |
-80 ~ 100 |
| 29 |
Nickel 120 |
0 ~ 100 |
| 2A |
Platinum 1000, α= 0.00385 |
-200 ~ 600 |
| 2B |
Cu 100 at 0°C,α= 0.00421 |
-20 ~ 150 |
| 2C |
Cu 100 at 25°C,α= 0.00427 |
0 ~ 200 |
| 2D |
Cu 1000 at 0°C,α= 0.00421 |
-20 ~ 150 |
| 2E |
Platinum 100, α= 0.00385 |
-200 ~ 200 |
| 2F |
Platinum 100, α= 0.003916 |
-200 ~ 200 |
| 80 |
Platinum 100, α= 0.00385 |
-200 ~ 600 |
| 81 |
Platinum 100, α= 0.003916 |
-200 ~ 600 |
| |
|
|
|
