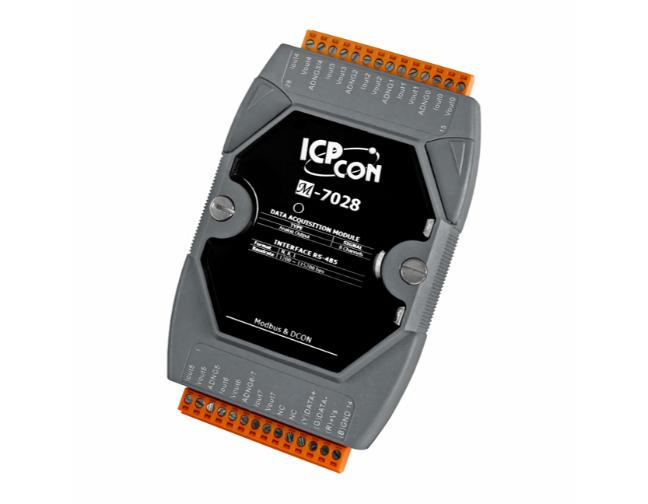

M-7028 - 8-channel Analog Output Module. 12-bit Analog Output. Wide Operating Temperature Range: -25 to +75C. Modbus RTU
by ICP DAS

The M-7028 is a 12-bit, 8-channel analog output module. It provides a programmable output range on all analog output channels (0 ~ 5 V, +/-5 V, 0 ~ 10 V, +/-10 V, +4 ~ +20 mA or 0 ~ +20 mA). Each analog output channel can be configured for an individual range and the module also features per-channel open wire detection for the +4 ~ +20 mA output, together with 8 kV ESD Protection as well as 3000 VDC intra-module isolation. Options for configuring power-on and safe values are also included.

Communication
Interface	RS-485
Bias Resistor	Yes
Format	(N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Baud Rate	1200 to 115200 bps
Protocol	Modbus RTU, DCON
Dual Watchdog	Yes, Module (1.6 Seconds), Communication (Programmable)
LED Indicators/Display
System LED Indicator	Yes, 1 LED as Power/Communication Indicator
I/O LED Indicators	-
7-Segment LED Display	-
Isolation
Intra-module Isolation, Field-to-Logic	3000 VDC
EMS Protection
ESD (IEC 61000-4-2)	±8 kV Contact for each Terminal
RS Immunity (IEC 61000-4-3)	3 V/m, 80 MHz ~ 1 GHz
EFT (IEC 61000-4-4)	±4 kV for Power Line
Surge (IEC 61000-4-5)	-
Power
Reverse Polarity Protection	Yes
Input Range	+10 ~ +30 VDC
Consumption	4.3 W
Mechanical
Dimensions (L x W x H)	123 mm x 72 mm x 35 mm
Installation	DIN-Rail or Wall Mounting
Environment
Operating Temperature	-25 to +75C
Storage Temperature	-40 to +85C
Ambient Relative Humidity	10 to 95% RH, Non-condensing

Analog Output
Channels	8
Current Output Wiring	Source
Range	0 ~+5 VDC ±5 VDC 0 ~ +10 VDC ±10 VDC 0 ~ +20 mA +4 ~ +20 mA
Resolution	12-bit
Accuracy	±0.1% of FSR
DA Output Response Time	10 ms per channel
Programmable Output Slope	Voltage: 0.0625 ~ 512 V/Second Current: 0.125 ~ 1024 mA/Second
Current Output Capacity	500 O
Voltage Output Capability	10 V @ 10 mA
Open Wire Detection	Yes, for the 4 ~ 20 mA output
Power-on Value	Yes, Programmable
Safe Value	Yes, Programmable
