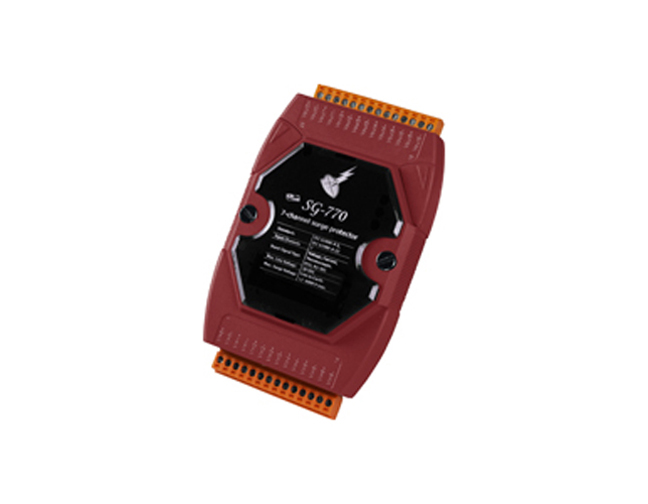

ICP DAS SG-770 - 7 Channel Surge Protector
by ICP DAS
|
|
|
|
7 Channel Surge Protector with input types: Voltage, Current, Thermocouple, RTD, RS-485
|
|
|
SG-770 offers 7 channels for surge protection. SG-770 is approved with IEC 61000-4-5 and IEC 61000-4-12 standards. Each of channels supports 0 V ~ ±30 V signal and each of channels is protected for surge achieves 6 kV.
- IEC 61000-4-5, IEC 61000-4-12
- 6 kV Surge Protection
- RoHS Compliance
- A Wide Range of Operating Temperature: -25°C ~ +75°C
- Easily wire connection
- Applications
- Voltage
- Current, Thermocouple
- RTD
- RS-485 Surge Protection
| General |
| Standards |
IEC 61000-4-5, IEC 61000-4-12 |
| Input Channels |
7 |
| Input Signal Type |
Voltage, Current, Thermocouple, RTD, RS-485 |
| Max Line Voltage |
30 VDC |
| Protection Performance |
| Surge Waveform |
IEC 61000-4-5
IEC 61000-4-12 |
| Max. Surge Voltage |
Line to Earth: ±6000 V max. |
| Environment |
| Operating Temperature |
-25°C ~ 75°C |
| Storage Temperature |
-30°C ~ 75°C |
| Humidity |
5% ~ 95% RH, Non-condensing |
|
|
|
|
