SG-3227 - 2 Channel IEPE Signal Conditioner. Has Integrated Electronic Piezo Electric inputs and 2mA, 4mA, 6mA and 10mA current by ICP DAS
|
|
|
SG-3227_SUMMARY.html
- 2-channel Input
- Individual Channel Configuration
- Excitation Current Support: 2 mA/4mA/6mA/10mA
- Signal Amplification of x1 , x10 and x100
- LED Indicators for Sensor Open, Short and Normal
- Flexible DIN-Rail Mounting
|
|
|
SG-3227_DESCRIPTION.html

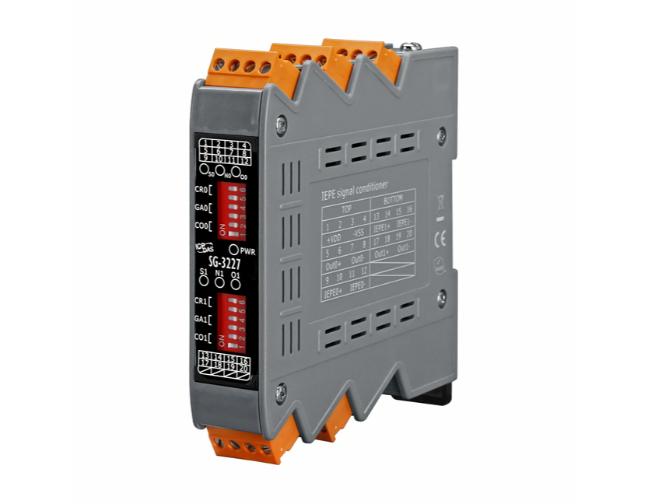

SG-3227 is a 2-channel IEPE signal conditioner. It has 2mA/4mA/6mA/10mA excitation current for sensors with integrated amplifiers. It features three selectable gain x1/x10/x100 ranges individually for two channels. LED failure indicators for sensor condition minimize the risk of handling errors.
SG-3227.html
I/O Specifications
Channels
|
2
|
Connectors
|
Screw Terminal (Including a female BNC to terminal block adaptor)
|
Excitation Current
|
2 mA/4mA/6mA/10mA
|
Gain
|
x1/x10/x100 for AC Coupling
|
Upper Cut-off Frequency
|
x1, x10 Gain: 80 kHz; x100 Gain: 50 kHz
|
Lower Cut-off Frequency
|
AC Coupling (0.1uF): 1.6 Hz AC Coupling (1uF): 0.2 Hz
|
System Specifications
System LED Indicator
|
1 as Power Indicator
|
LED Status Indicator
|
Yellow : Sensor Open Green : Sensor Normal Red : Sensor Short
|
Input/Output to Power
|
1000 VDC
|
ESD (IEC 61000-4-2)
|
±4 kV Contact for each Terminal
|
EFT (IEC 61000-4-4)
|
±4 kV for Power Line
|
Surge (IEC 61000-4-5)
|
±1 kV for Power Line
|
Reverse Polarity Protection
|
Yes
|
Input Range
|
+10 to +30 VDC
|
Consumption
|
3 W
|
Dimensions (W x L x H)
|
25 mm x 116 mm x 120 mm
|
Installation
|
DIN-Rail or Wall Mounting
|
Operating Temp.
|
-25C ~ 75C
|
Storage Temp.
|
-40C ~ 85C
|
Humidity
|
10 ~ 90% RH, non-condensing
|
|
