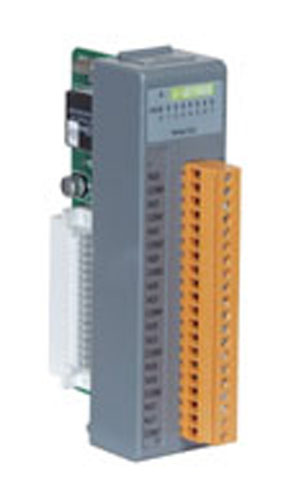

ICP DAS I-87068 - Relay output module (8 points)
by ICP DAS

I-87068 has a serial bus (RS-485) communication interface with DCON protocol. It can be WinCon, LinCon, I-8000 controllers and I-87K, RF-87K I/O expansion units. I-87068 is relay output module with 8 channels. I-87068 is a serial cartridge based I/O module that offers the ultimate in cost effective flexibility.

I-87068
Output Channels	8
Output Type	4 Form A Power Relays
	4 Form C Power Relays
Operating Voltage Range	5 ~ 110VAC@0.5A (47 ~ 63Hz)
	5 ~ 24VDC @1A
Relay Contact Voltage Range	0~ 120VAC@0.5A (47 ~ 63Hz)
	0~ 30VDC@1A
Max. load Current	1.0 Arms
Max. Operate Time	7 ms Max.
Max. Release Time	3 ms Max.
Dielectric Strength	Detween Open Contacts : 500Vrms (at 1 Minute)
	Detween Coil and Contacts : 1000Vrms (at 1 Minute)
Relay Life	Mechanical : 10,000,000 Min.
	Electrical : 500, 000 Operation at 30V@1A, 200, 000 Operation at 120V@0.5A, , Resistive
LED Display	1 LED as Power/ Communication Indicator
	8 LEDs as Power Relay Ouput Indicators
Power Consumption	1.8W
Operating Temperature	-25°C to 75°C
Storage Temperature	-30°C to 75°C
Humidity	5% to 95%, Non-condensing
Dimensions	31mm x 67mm x 114mm (W x D x H)
