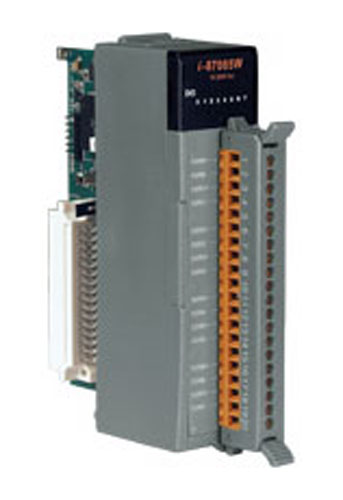

ICP DAS I-87065W - 8 channel AC Solid state relay output module
by ICP DAS

I-87065W has a serial bus (RS-485) communication interface with DCON protocol. It can be used with our WinPAC, XPAC, and ViewPAC controllers. I-87065W is an 8-channel AC SSR Output Module. I-87065W is a serial cartridge based I/O module that offers the ultimate in cost effective flexibility.

Digital Output
Output Channels	8
Output Type	AC SSR, Form A (Normal Open)
RatedLoad Voltage	24 to 265Vrms
Rated Load Current	1.0 Arms
Max. Operate Time	1 ms
Max. Release Time	1/2 Cycle + 1 ms
Max. On-state Voltage Drop	1.2Vrms
Max. Off-state Leakage Current	0.75mA ( at 100 Vrms 60Hz ), 1.5mA ( at 200Vrms 60 Hz )
Insulation Resistance	Min. 1,000 MOhm, at 500VDC
Dielectric Strength	2500 Vrms
Life	Long Life, Maintenance Free
4KV ESD  Protection	Yes, contact for each terminal
LED Display
1 LED as Power/ Communication Indicator
8 LEDs as AC-SSR Output Indicators
Power
Power Consumption	0.6W
Environment
Operating Temperature	-25 to 75 °C
Storage Temperature	-30 to 75 °C
Humidity	5 to 95% RH, non-condensing
Dimensions
30mm x 102mm x 115mm(W x L x H)
