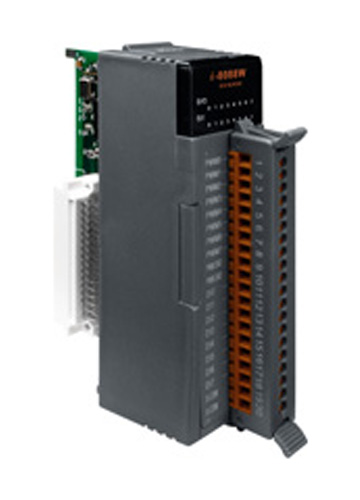

ICP DAS I-8088W - 8 channel PWM Output and 8 channel Isolated Digital Input Module
by ICP DAS

8-channel PWM Output And 8-Channel isolated DI Module

Description
Specification
Datasheet

8-channel PWM Output And 8-Channel isolated DI Module

PWM (Pulse width modulation) is a powerful technique for controlling analog circuits. It uses digital outputs to generate a waveform with variant duty cycle and frequency to control analog circuits. I-8088W has 8 PWM output channels and 8 digital inputs. It can be used to develop powerful and cost effective analog control system

Automatic generation of PWM outputs by hardware, without software intervention.
10 Hz ~ 500 kHz (non-continuous) PWM output frequency with 0.1%~99.9% duty cycle
Software and hardware trigger mode for PWM output
Individual and synchronous PWM output
Using software trigger mode, you can set configuration for all PWM channels then trigger them one by one or all of them at the same time.
Burst mode PWM operation for standby
DI channel can be configured as simple digital input channel or hardware trigger source of the PWM output.
Applications:
- Controlling the position/speed of motors
- Dimming the brightness of lamps
- Controlling the speed of fans

PWM Output
Channels	8-ch
Scaling Resolution	16-bit(1 ~128 μs for each step)
Frequency Range	10 Hz ~ 500 kHz (non-continuous)
Duty Cycle	0.1% ~ 99.9%
PWM Mode	Burst Counting, Continuous mode
Burst Counter	1 ~ 65535
Hardware Trigger Mode	Trigger Start & Trigger Stop
Output Type	Source
Max Load Current	1 mA
Intra-module Isolation, Field to Logic	3750 Vrms
ESD Protection	4 kV Contact for each channel
Digital Input
Input Channels	8(Sink/Source)
Input Type	One Common for All Digital Input
On Voltage Level	+5 ~ +30 V
Off Voltage Level	<0.8V
Input Impedance	4.7 kΩ, 1/4 W
Intra-module Isolation, Field to Logic	3750 Vrms
ESD Protection	4 kV Contact for each channel
LED Display
1 LED as Power Indicator /16 LED as PWM and Digital Input Indicator
Power
Power Consumption	40 mA @ 5 V, 2 W ±5%
Environment
Operating Temperature	-25 ~ 75°C
Storage Temperature	-30 ~ 85°C
Humidity	5 to 95% RH, Non-condensing
Dimensions
30mm x 102mm x 115mm (W x L x H)
