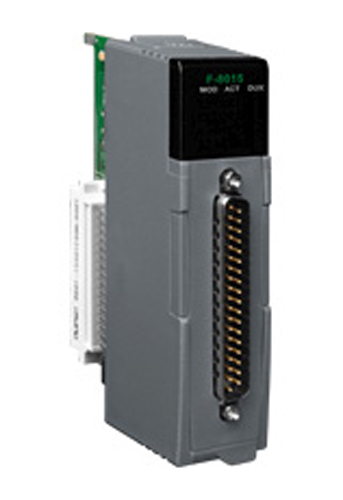

ICP DAS F-8015 - Analog Input Module, 8 channels, RTD sensor Pt100, Pt1000, JPt100, Isolated
by ICP DAS
|
|
|
|
8-channel Isolated RTD Input Redundant Module for DCS systems, 8 Samples/sec sampling rate, supports operating temperatures from -25°C~ +75°C
|
|
|
The F-8015 is a 16-bit, 8-channel RTD input module that features programmable input range on all channels. This module has ±0.05% accuracy for highly accurate application. Besides, the F-8015 provides 3000VDC optical isolation between channels and backplane bus. If any high voltage or current damages these channels, this module won’t affect other component in iDCS-8000 system.
- 8 RTD input channels
- User defined up/down scale
- Open wire detection
- RoHS compliance
- 3000 VDC isolation from input to backplane
- 3000 VDC isolation from input to frame ground
- Redundancy
- Fast redundant switching time (<100us)
| Feature |
| Redundant |
Yes (Switching time < 100us) |
| Over Voltage Protection |
Yes |
| Termination board break off detection |
Yes |
| Open Wire Detection |
Yes |
| LED indicator |
1 RUN, 1 ACT, 1 DUX |
| RTD Input |
| Number of channels |
8 |
| Type |
Pt-100 |
IEC 60751 ITS90 (0.03851 Ω/Ω/°C) |
| JPt-100 |
JIS C 1604 (0.03916 Ω/Ω/°C) |
| Pt-1000 |
IEC 60751 ITS90 (0.03851 Ω/Ω/°C) |
| Temperature Range |
Pt100 |
-200 ~ +850 |
| JPt-100 , Pt1000 |
-200 ~ +630 |
| Maximum Allowable Input Voltage |
120 VDC |
| Resolution |
16 bit |
| Sampling Rate |
8 Samples/sec (Total) |
| Accuracy |
±0.05% FSR (±250 mΩ) |
| Zero Drift |
±0.5 μV/°C |
| Span Drift |
±20 ppm/°C |
| Common Mode Rejection |
106 dB |
| Normal Mode Rejection |
90 dB |
| Input Impedance |
20 MΩ |
| Data Range |
-2500 ~ 12500 |
| Isolation |
3000 VDC |
| Certification |
| EMC |
EN61000-6-2, EN61000-6-4, IEC/EN 61000-4-2, IEC/EN 61000-4-4 |
| General |
| Termination board |
DN-RTD-M |
| Maximum power consumption |
1 W |
| Operating temperature |
-25°C~ +75°C |
| Humidity |
5 ~ 95 % RH, Non-condensing |
| Weight |
300 g |
| Dimensions (W x L x H) |
30mm x 85mm x 115mm |
|
|
|
|
