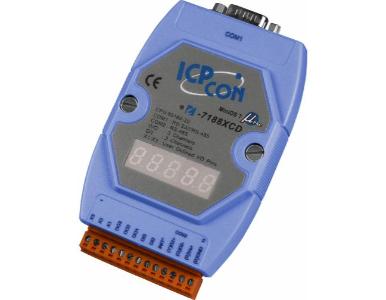

I-7188XCD - I-7188 Expandable Embedded Data Acquisition Controller, Programmable in C Language with 7 segment display
by ICP DAS
|
|
|
|
I-7188XCD_SUMMARY.html
- AMD 80188 40MHz/80MHz embedded CPU (80MHz available in I-7188XB)
- Reloadable Operating Software
- Remote Configuration
- 64-bit hardware unique serial number inside
- COM driver support interrupt & 1K QUEUE input buffer
- COM port: COM1, COM2, COM3, Com4 (COM3/4 available on I-7188XA)
- Built-in RTC, NVRAM, EEPROM
- User defined 14 I/O lines
- Built-in I/O expansion bus interface
- Internal expansion bus allows for multiple capability configurations
- Built-in self-tuner ASIC controller on RS-485 port
- 7-segment LED display for I-7188EXD
- Built-in MiniOS7
- Program download port: COM1
|
|
|
I-7188XCD_DESCRIPTION.html
The ICP DAS I-7188XCD offers boundless expansion capabilities with their internal expansion bus; allowing for fully customizable applications, in a compact and robust-embedded control-format. I-7188X controllers are programmable in C language, and offer a cost effective solution for any size industrial control application!
I-7188XCD.html
- CPU: Am188ES CPU @ 40MHz
- SRAM: 512Kb
- Flash Memory: 512Kb; Erase unit is one sector (64K bytes);
- 100,000 erase/write cycles
- NVSRAM: 31 bytes, battery backup, data valid up to 10 years
- EEPROM: 2048 bytes (8 blocks, each block has 256 bytes)
- Data retention: 100 years; 1,000,000 erase/write cycles.
- Real Time Clock
- COM1: RS-232/485: TXD, RXD, RTS, CTS, GND
- COM2: RS-485: D1+, D1-, self-tuner ASIC inside
- COM3: RS-232: TXD, RXD, RTS, CTS, GND
- COM4: RS-232: TXD, RXD, RTS, CTS, GND
- Communication speed: 115,200 bps max.
- User defined I/O pins: 14
- Power requirements: 10 to 30VDC(non-regulated)
- Power consumption: 2.0W for I-7188EX; 3.0W for I-7188EXD
- Operating temperature: -25C ~ 75C
- Humidity rating: 10% ~ 90% non-condensing
- Dimensions:
- 123mm x 72mm x 33mm
- I-7188XA/B/C: 123mm x 64.5mm x 19.6mm
- Din Rail Mount
|
