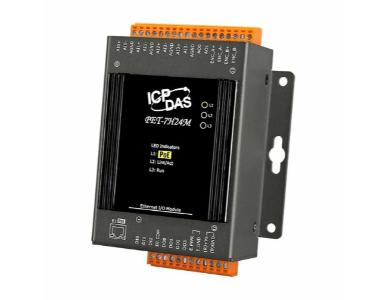

PET-7H24M - High Speed Ethernet Data Acquisition Module with 4 AI, 2 AO, 3 DI, 4 DO, 1 Encoder, and PoE (Metal Case).
by ICP DAS
|
|
|
|
PET-7H24M_SUMMARY.html
- 4 differential Analog Input Channels (24-bit Resolution)
- 24-bit ADC with Built-in Sinc3 Filter
- Supports Real Sample and Hold
- Sample Rate up to 128 kS/s
- 2 x AO, 4 x DO, 3 x DI and 1 x Encoder Channels
- Continuous and N Data Sample Data Transmission Mode
- A/D Trigger Modes: Software Trigger & Analog Input Trigger
- Software Support
- Supported Operating Systems: Windows 7/8/10 and Linux
- Software Compatibility: A.) Microsoft VC, C#, VB.NET SDK API and Demo B.) NI LabVIEW Toolkit and Demo for Windows C.)C/C++ library and Demo for Linux
- Built-In 10/100BASE-T Auto-negotiating, Auto MDI/MDI-X Ethernet Port
- Option for External Power Supply or POE Supply
|
|
|
PET-7H24M_DESCRIPTION.html
The PET-7H24M is a high speed data acquisition devices with a built-in Ethernet communication port for data transfer over a network, and includes 4 high-speed 24-bit differential Analog input channels (128 kHz sample and hold for all 4 channels), 2 Analog Output channels, 3 Digital Input channels, 4 Digital Output channels and 1 Encoder Input channel.
PET-7H24M.html
|
EFT (IEC 61000-4-4)
|
±4 kV for power
|
|
ESD (IEC 61000-4-2)
|
±4 kV contact for each terminal, ±8 kV air for random point
|
|
Status
|
1 x System, 1 x Ethernet, 1 x PoE
|
|
Programmable Digital Filter
|
0.55 ~ 33.3 ?s (7 steps)
|
|
Mode
|
Quadrant/CW/CCW and Pulse/Dir
|
|
Input Level
|
On Voltage Level: +3.5 ~ +5 VDC
Off Voltage Level: +0.8 VDC Max.
|
|
Isolation
|
2500 V DC
|
|
Counting Rate
|
Quadrant Counting: 2 MHz (Max.)
CW/CCW: 6 MHz (Max.)
Pulse/Dir: 6 MHz (Max.)
|
|
Counter Width
|
32-bit
|
|
Channels
|
4 Differential (Simultaneously)
|
|
Range
|
Bipolar Input (Programmable): ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V, ±300 mV, ±150 mV, ±75 mV, ±40
mV, ±20 mV
|
|
Resolution
|
24-bit
|
|
Accuracy
|
±0.01 % of FSR @ ±10 V
±0.02 % of FSR @ ±5 V, ±2.5 V
±0.02 % of FSR @ ±1.25V, ±0.625 V
±0.1 % of FSR @ ±300 mV, ±150 mV
±0.1 % of FSR @ ± 75 mV, ±40 mV
±0.2 % of FSR @ ±20 mV
|
|
Sampling Rate
|
128 KS/s (Each Channel)
|
|
Input Impedance
|
Voltage 2 MO
|
|
FIFO Size
|
4k Samples
|
|
Trigger Mode
|
Programmable: Software, Analog Input Trigger
|
|
Channels
|
3
|
|
Type
|
±10 V, ±5 V, 0 ~ 5 V, 0 ~ 10 V
|
|
Resolution
|
12-bit
|
|
Accuracy
|
±0.01 % of FSR @ ±10 V, ±5 V, 0 ~ 10 V
±0.02 % of FSR @ 0 ~ 5 V
|
|
Voltage Output Capability
|
10 V @ 20 mA
|
|
Slew Rate
|
0.83 V/us
|
|
Channels
|
3
|
|
Sink/Source (NPN/PNP)
|
Sink/Source
|
|
Wet Contact, ON Voltage Level
|
+5 ~ +30 VDC
|
|
Wet Contact, OFF Voltage Level
|
2 VDC Max. p
|
|
Isolation
|
2500 VDC
|
|
Input Impedance
|
10 KO
|
|
Channels
|
4
|
|
Type
|
Isolated Open Collector
|
|
Sink/Source (NPN/PNP)
|
Sink
|
|
Load Voltage
|
+5 ~ +30 VDC
|
|
Max. Load Current
|
100 mA at 25 C
|
|
Overload Protection
|
1.3 A
|
|
Isolation
|
2500 VDC
|
|
Short-Circuit Protection
|
Yes
|
|
Ports
|
1 x RJ-45, 10/100 Base-TX
|
|
PoE
|
Yes
|
|
Security
|
ID, Password and IP Filter
|
|
Reverse Polarity Protection
|
Yes
|
|
Consumption
|
2.6W (Max.)
|
|
Powered from Terminal Block
|
+12 ~ +48 VDC
|
|
Casing
|
Metal
|
|
Dimensions (mm)
|
76 x 120 x 38 (W x L x H)
|
|
Installation
|
DIN-Rail, Wall mounting
|
|
Operating Temperature
|
-25 ~ +75 C
|
|
Storage Temperature
|
-30 ~ +80 C
|
|
Humidity
|
10 ~ 90% RH, Non-condensing
|
|
|
|
