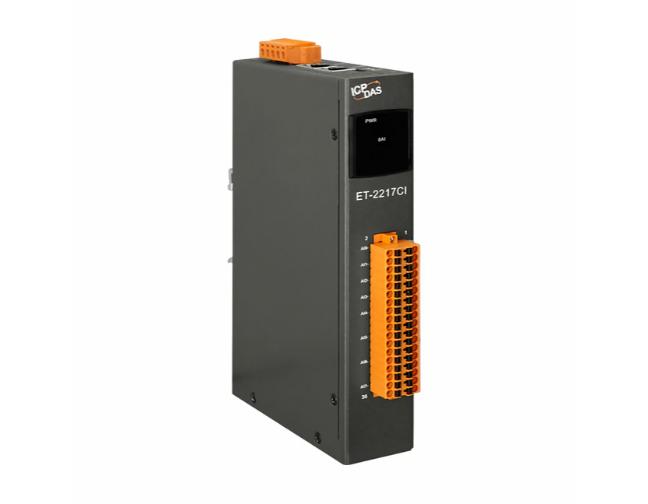

ET-2217CI - Ethernet I/O Module with 8 Channel Analog Inputs, Channel to Channel Isolation
by ICP DAS
|
|
|
|
ET-2217CI_SUMMARY.html
- Built-in Web Server
- Support Modbus TCP/UDP and MQTT Protocols
- 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
- I/O Pair Connection (Push and Pull)
- Software Configurable Voltage/Current Input
- Adjustable Sampling Rate (200Hz/10Hz per channel)
- Records with Time Stamps for Voltage and Current Measurements
- ET-2217CI-4: 480,000 records/each channel
- ET-2217CI: 320,000 records/each channel
- Built-in I/O
- ET-2217CI-4: 4-channel AI
- ET-2217CI: 8-channel AI
- 3000 VDC Channel-to-Channel Isolation
|
|
|
ET-2217CI_DESCRIPTION.html
The ET-2217CI is a channel-to-channel isolated analog input module that includes 8 analog input channels. The module provides a programmable input range on all Analog Input channels (±1 V, ±2.5 V, ±5 V, ±10 V, 0 to 20mA, 4 to 20mA, and ±20 mA). Each analog input channel can be configured for an individual input range, providing a high overvoltage protection of 120 Vdc and 50mA overcurrent protection at 110 VDC/VAC. Voltage and current input is software configurable.
ET-2217CI.html
| Software | | Built-in Web Server | Yes | | CPU Module | | CPU | 32-bit ARM | | Watchdog Timer | Module, Communication (Programmable) | | Isolation | | 2-way Isolation | Ethernet: 1500 VDC
I/O: 3000 VDC | | EMS Protection | | EFT (IEC 61000-4-4) | ±4 kV for Power Line | | ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal
±8 kV Air for Random Point | | Surge (IEC 61000-4-5) | ±2 kV for Power Line | | LED Indicators | | Status | Run, Ethernet | | System | | Real Time Clock | Yes | | Data Logger | Up to 320,000 records | | Analog Input | | Channels | 8 Differential | | Type | Voltage, Current
(Software configurable ) | | Range | Voltage: ±1 V, ±2.5 V, ±5 V, ±10 V
Current: 0 to 20mA, 4 to 20mA | | Resolution | 16-bit | | Accuracy | Normal Mode: ±0.1% of FSR
Fast Mode: ±0.5% of FSR | | Sampling Rate | Normal Mode: 10 Hz (per channel)
Fast Mode: 200 Hz (per channel) | | Input Impedance | Voltage: 20 MO
Current: 135 O | | Overvoltage Protection | +120 VDC | | Overcurrent Protection | 50 mA at 110 VDC (max.) | | Individual Channel Configuration | Yes | | Channel-to-Channel Isolation | 3000 VDC | | Open Wire Detection | For 4 to 20 mA only | | Ethernet | | Ports | 2 x RJ-45, 10/100 Base-Tx, Switch Ports | | LAN bypass | Yes | | Security | Password and IP Filter | | Protocol | Modbus TCP, Modbus UDP, and MQTT | | Power | | Reverse Polarity Protection | Yes | | Consumption | 5.4 W (max.) | | Powered from Terminal Block | +10 to +48 VDC | | Mechanical | | Casing | Metal | | Dimensions (mm) | 33 x 176 x 129 (W x L x H) | | Installation | DIN-Rail mounting / Wall mounting (Optional ASO-0015) | | Ingress Protection Rating | IP30 | | Environment | | Operating Temperature | -25 to +75 C | | Storage Temperature | -40 to +80 C | | Humidity | 10 to 90% RH, Non-condensing |
|
