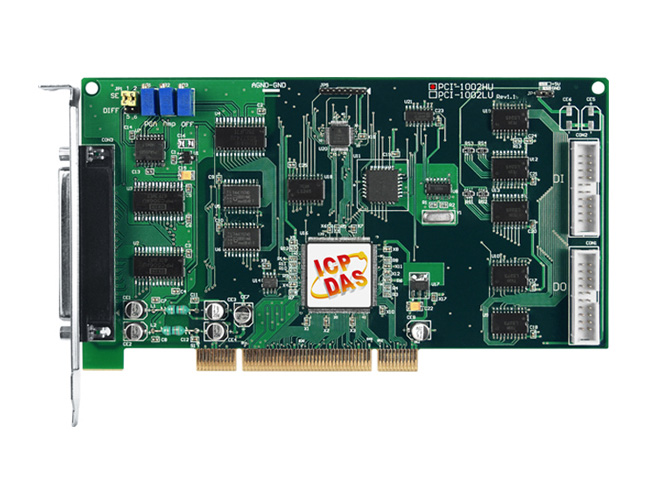

ICP DAS PCI-1002HU - Universal PCI of PCI-1002H board
by ICP DAS
|
|
|
|
Universal PCI, 32-ch, 12-bit, 110 kS/s or 44 kS/s Multi-function Board. 16 digital input/16 digital output channels.
|
|
|
The PCI-1002HU card is the new generation product that ICP DAS provides to meet RoHS compliance requirement and is designed as completely compatible with the PCI-1002L/H. Users can replace the PCI-1002L/H by the PCI-1002HU directly without software/driver modification.
The PCI-1002HU supports 3.3 V/5 V PCI bus, while the PEX-1002L/H supports PCI Express bus. These cards are a family of A/D board and features low-gain 110 kS/s or high-gain 44 kS/s analog input. It provides 12-bit 32 single-ended or 16 differential analog inputs, 16 digital input and 16 digital output channels.
The PEX-1002L/H also adds a Card ID switch on-board. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PEX-1002L/H cards in one computer. The PCI-1002HU and PEX-1002L/H provide The pull-high/ pull-low resisters allow the DI status to be specified when the DI channels are unconnected; the DI status will remain in high or low status other than floating.
These cards support various OS such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 7/Vista/XP. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
- 12-bit resolution, 100 kS/s high-speed AD converter.
- 32 single-ended/ 16 differential inputs.
- The max. sampling rate is low-gain 110 kS/s or high-gain 44 kS/s.
- PCI-1002LU/PEX-1002L: programmable low gain: 1, 2, 4, 8.
- PCI-1002HU/PEX-1002H: programmable high gain: 1, 10, 100, 1000.
- 16 digital input/16 digital output channels.
- Internal/external trigger.
- Half size board.
- Digital input port can be set to pull-high or pull-low.
[PEX-1002L/H]
- Supports PCI Express x1
- Supports Card ID (SMD Switch)
[PCI-1002LU/HU]
- Universal PCI card, supports the +5 V and +3.3 V PCI Bus.
| Analog Input |
| Channels |
32 single-ended/16 differential |
| A/D Converter |
12-bit, 8 μs Conversion time |
| Sampling Rate |
44 kS/s. max. |
| FIFO Size |
N/A |
| Over voltage Protection |
Continuous +/-35 Vp-p |
| Input Impedance |
10 MΩ/6 pF |
| Trigger Modes |
Software, Internal programmable pacer, External (5 V/TTL compatible) |
| Data Transfer |
Polling, Interrupt |
| Accuracy |
0.01 % of FSR ±1 LSB @ 25 °C, ± 10 V |
| Zero Drift |
+/- 4 ppm/°C of FSR |
| Dgital Input |
| Channels |
16 |
| Compatibility |
5 V/TTL |
| Input Voltage |
Logic 0: 0.8 V max.
Logic 1: 2.0 V min. |
| Response Speed |
1.0 MHz (Typical) |
| Digital Output |
| Channels |
16 |
| Compatibility |
5 V/TTL |
| Output Voltage |
Logic 0: 0.4 V max.
Logic 1: 2.4 V min. |
| Output Capability |
Sink: 2.4 mA
Source: 0.8 mA |
| Response Speed |
1.0 MHz (Typical) |
| Timer/Counter |
| Channels |
500 KHz |
| Resolution |
16-bit |
| Compatibility |
5 V/TTL |
| Input Frequency |
10 MHz max. |
| Reference Clock |
Internal: 4 MHz |
| General |
| Bus Type |
3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus |
16-bit |
| Card ID |
No |
| I/O Connector |
Female DB37 x 1
20-pin box header x 2 |
| Dimensions (L x W x D) |
188 mm x 105 mm x 22 mm |
| Power Consumption |
960 mA @ +5 V |
| Operating Temperature |
0 ~ 60 °C |
| Storage Temperature |
-20 ~ 70 °C |
| Humidity |
5 ~ 85% RH, non-condensing |
| Analog Input Range |
| Gain |
10 |
| Bipolar |
+/- 1 |
| Sampling Rate Max. |
36 kS/s. |
|
|
|
|
