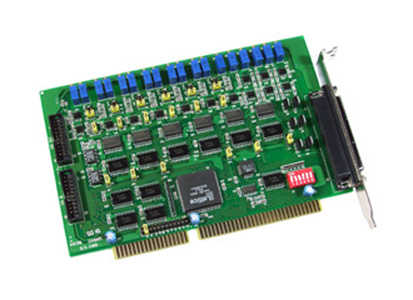

The A-626, A-628 are 12-bit analog output boards with 16 channel digital input and 16 channel digital output .The A-626,A-628 boards support both current and voltage range .The output channel can be jumper selectable for different voltage range ;+/-10 V, +/-5 V, 0 ~ 5 V, 0 ~ 10 V and can sink 4 ~ 20 mA current when connected to an external voltage source. On board reference chip BB Ref-01 is used for solving the thermo-drifting problem of the reference voltage Therefore A-626 is much better than 726 families for long period operation. Lattice FPGA on board can increase the stability of the board.
- Backward compatible to 726 series
- 6 or 8 analog output channels
- 12-bit resolution
- 0 ~ 5 V,0 ~ 10 V,*5 V,*10 V output range
- 4 ~ 20 mA current loop capability ,sink to ground
- On board reference -5 V, -10 V
- External reference *10 V (max.) AC or DC
- External Interrupt request signals, IRQ level from IRQ 3 ~ IRQ 15
- 16-channel digital input and 16 channel digital output Connects directly to DB-16P,DB-16R DN-20,DN-37, 782 and 785 families
| Analog Output |
| Channels |
8 |
| Resolution |
12-bit |
| Accuracy |
0.01% of FSR ± 1 LSB @ 25 °C, ± 10 V |
| Output Range |
Unipolar: 0 ~ 5 V, 0 ~ 10 V
Bipolar:+/- 5 V, +/- 10 V |
| Output Driving |
+/- 5 mA |
| Slew Rate |
0.6 V/μs |
| Output Impedance |
0.1 Ω max. |
| Operating Mode |
Software |
| Digital Input |
| Channels |
16 |
| Compatibility |
5 V/TTL |
| Input Voltage |
Logic 0: 0.8 V max.
Logic 1: 2.0 V min. |
| Response Speed |
1.0 MHz (Typical) |
| Digital Output |
| Channels |
16 |
| Compatibility |
5 V/TTL |
| Output Voltage |
Logic 0: 0.4 V max.
Logic 1: 2.4 V min. |
| Output Capability |
Sink: 0.8 mA @ 0.8 V
Source: -2.4 mA @ 2.0 V |
| Response Speed |
1.0 MHz (Typical) |
| General |
| Bus Type |
ISA |
| I/O Connector |
Female DB37 x 1
20-pin box header x 2 |
| Dimensions (L x W x D) |
157 mm x 106 mm x 22 mm |
| Power Consumption |
1.1 A @ +5 V (Max.)
130 mA @ +12 V (Max.)
105 mA @ -12 V (Max.) |
| Operating Temperature |
0 ~ 60 °C |
| Storage Temperature |
-20 ~ 70 °C |
| Humidity |
5 ~ 85% RH, non-condensing |
|
