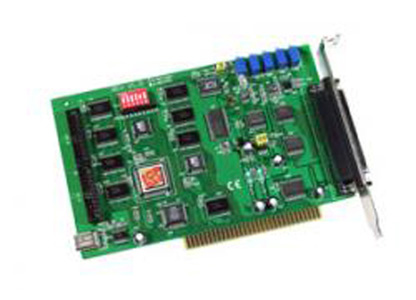

ICP DAS A-821PGH/S - A-821PGH + Daughter Board DB-8225
by ICP DAS
|
|
|
|
45KS/s 12-bit Analog & Digital I/O High Gain Multi-Function Board with 16/8 analog inputs, 16 digital inputs, 16 digital outputs, 1 independent analog output, and 3 timer/counter channels. Supports operating temperatures from 0 ~ 60 °C. Includes one CA-4002 D-Sub Connector.
|
|
|
The A-821PGH/L is 12-bit multifunction analog and digital I/O boards for the PC/AT compatible computer. The A-821PGH/L offer 16 single-ended or 8 differential analog inputs, plus two channels of analog output with 12-bit resolution. In addition, The A-821PGH/PGL has 16 digital input, 16 digital output, and one timer/counter channel. The A-821PGH Provides gain of 1, 10,100 , 1000 while the A-821PGL provides gains of 1 , 2 , 4, 8 . It has a maximum sampling rate of 45 k Samples/Sec. . Interrupts are programmable 3 and 9 and provide one channel D/A output.
ICP DAS discontinue the /NDA model (without D/A function) since the standard model provides full functions that covers the requirement for /NDA version. Please contacts us for OEM/ODM project if you are interested on customized version (or /NDA model).
- 12-bit A/D converter
- 12-bit D/A converter
- 16 single-ended or 8 differential input channels
- 45 k/s sampling rate
- One 12-bit analog output channel
- Analog Output Range : 0 ~ 5 V , 0 ~ 10 V
- Software programmable gain :
A-821PGL (Low Gain Version ) : 1 , 2 , 4 , 8
A-821PGH(High Gain Version) : 1, 10, 100, 1000
- Interrupt handling
- A/D Trigger modes : Software Trigger, Pacer Trigger, External Trigger , Event Trigger
- A/D data transfer modes : polling , interrupt , DMA
- 16 digital input & 16 digital output
- 37 pin D-Sub connector
| Analog Input |
| Channels |
16 single-ended/8 differential |
| A/D Converter |
12-bit, 8 μs conversion time |
| Sampling Rate |
45 kS/s. max. |
| Over voltage Protection |
Continuous +/-35 Vp-p |
| Input Impedance |
10 MΩ/6 pf |
| Trigger Modes |
Software, Pacer |
| Data Transfer |
Polling, Interrupt |
| Accuracy |
0.01 % of FSR ±1 LSB @ 25 °C, ± 10 V |
| Zero Drift |
15 ppm/°C of FSR |
| Analog Output |
| Channels |
1 independent |
| Resolution |
12-bit |
| Accuracy |
0.01% of FSR ± 1 LSB @ 25 °C, ± 10 V |
| Output Range |
Unipolar: 0 ~ 5 V, 0 ~10 V
Bipolar: +/-10 V |
| Output Driving |
+/- 5 mA |
| Slew Rate |
0.6 V/μs |
| Output Impedance |
0.1 Ω max. |
| Operating Mode |
Software |
| Digital Input |
| Channels |
16 |
| Compatibility |
5 V/TTL |
| Input Voltage |
Logic 0: 0.8 V max.
Logic 1: 2.0 V min. |
| Response Speed |
1.0 MHz (Typical) |
| Digital Output |
| Channels |
16 |
| Compatibility |
5 V/TTL |
| Output Voltage |
Logic 0: 0.4 V max.
Logic 1: 2.4 V min. |
| Output Capability |
Sink: 0.8 mA @ 0.8 V
Source: -2.4 mA @ 2.0 V |
| Response Speed |
1.0 MHz (Typical) |
| Timer/Counter |
| Channels |
3 independent |
| Resolution |
16-bit |
| Compatibility |
5 V/TTL |
| Input Frequency |
10 MHz max. |
| Reference Clock |
Internal: 2 MHz |
| General |
| Bus Type |
ISA |
| I/O Connector |
Female DB37 x 1
20-pin box header x 2 |
| Dimensions (L x W x D) |
160 mm x 106 mm x 22 mm |
| Power Consumption |
300 mA @ +5 V
60 mA @ +12 V
30 mA @ -12 V |
| Operating Temperature |
0 ~ 60 °C |
| Storage Temperature |
-20 ~ 70 °C |
| Humidity |
5 ~ 85% RH, non-condensing |
| Analog Input Range |
| Model |
A-821PGL (Low-Gain) |
| Gain |
1 |
2 |
4 |
8 |
| Bipolar (V) |
+/- 5 |
+/- 2.5 |
+/- 1.25 |
+/- 0.625 |
| Sampling Rate Max. |
45 kS/s |
45 kS/s |
45 kS/s |
45 kS/s |
| Model |
A-821PGH (High-Gain) |
| Gain |
1 |
10 |
100 |
1000 |
| Bipolar (V) |
+/- 5 |
+/- 0.5 |
+/- 0.05 |
+/- 0.005 |
| Sampling Rate Max. |
45 kS/s |
45 kS/s |
10 kS/s |
1 kS/s |
|
|
