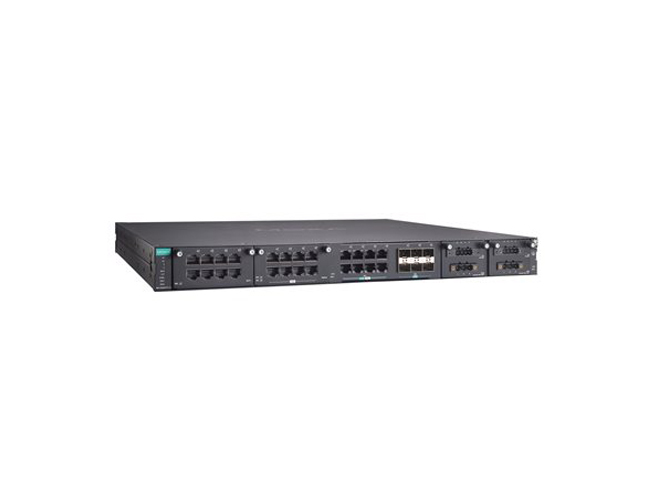

Moxa RKS-G4030-PL-PoE-8QGT-6XGS-T

Moxa RKS-G4030-PL-PoE-8QGT-6XGS-T - Layer 2 modular managed Ethernet switch with 8 fixed 2.5G BaseT(X) PoE ports, 6 fixed 10GbE
by MOXA

Scalable design supporting up to 30 ports, from Fast Ethernet to 10GbE industrial networks
Modular interfaces with LAN modules and power modules for flexible expansion
IEEE 802.3bt PoE with up to 90 W per port and 720 W total budget for high-power devices
High EMC immunity compliant with IEC 61850-3 and IEEE 1613
Hardware-based IEEE 1588 PTP for high-precision time synchronization
Intelligent chassis monitoring with built-in temperature detection
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches) , and STP/RSTP/MSTP for network redundancy
Supports MXView One series for easy, visualized industrial network management
GOOSE Check for easy troubleshooting
Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA
IEC 62443-4-2 Security Level 2 certified
-40 to 75°C operating temperature range

Description
Specification
Datasheet

Moxa RKS-G4030-PL-PoE-8QGT-6XGS-T

The RKS-G4030-PL-L3 Series is purpose-built to deliver exceptional reliability and performance for mission-critical industrial and business applications, including power substation automation, railway operations, and intelligent transportation systems.

With its high-density 10GbE backbone (up to 6 fixed 10G SFP+ ports), modular LAN expansion (up to 16 additional Gigabit ports), and dual isolated redundant power supply options (12/24/48 VDC, 110/220 VAC/VDC), the RKS-G4030-PL-L3 Series ensures robust communication while reducing wiring and maintenance costs.

Even better, the dual-sided power installation design (front or rear) maximizes installation convenience for diverse cabinet layouts.

Specifications

10/100/1000/2500BaseT(X) ports (RJ45 connector): 8
Out-of-band management (OOBM): 1 x 8-pin RJ45 1GbE ethernet port (MGMT)
Expansion module slots: 2
All Ethernet ports on the RKS-G4030-PL series operate in full-duplex mode exclusively. Half-duplex transmission is not supported.
Management:
- ARP
  Back Pressure Flow Control
  DHCP Relay Agent (Option 82)
  DHCP Server/Client
  Fiber check
  Flow control
  HTTP
  HTTPS
  IPv4
  Linkup Delay
  LLDP
  Port Mirroring (SPAN, RSPAN)
  Private MIB
  RARP
  RMON
  SFTP
  SMTP
  SNMP Inform
  SNMP Trap
  SNMPv1/v2c/v3
  Syslog
  Telnet
  TFTP
Industrial protocols: EtherNet/IP, Modbus TCP, PROFINET
Storage port: USB Type A, microSD card
Console port: RS-232 (RJ45)
Total PoE power budget: 720W
Overload current protection: supported
Reverse polarity protection: supported
IP Rating: IP40
Installation: rack mounting
Operating temperature: -40~75ºC
