Moxa RKS-G4028-PL-L3-12XGS-T - Layer 3 modular managed Ethernet switch with 12 fixed 10GbE SFP+ ports, 2 slots for Ethernet modu
by MOXA
|
|
|
|
- Scalable design supporting up to 28 ports, from Fast Ethernet to 10GbE industrial networks
- Modular interfaces with LAN modules and power modules for flexible expansion
- IEEE 802.3bt PoE with up to 90 W per port and 720 W total budget for high-power devices
- High EMC immunity compliant with IEC 61850-3 and IEEE 1613
- Hardware-based IEEE 1588 PTP for high-precision time synchronization
- Intelligent chassis monitoring with built-in temperature detection
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches) , and STP/RSTP/MSTP for network redundancy
- Supports MXView One series for easy, visualized industrial network management
- GOOSE Check for easy troubleshooting
- Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA
- IEC 62443-4-2 Security Level 2 certified
- -40 to 75°C operating temperature range
|
|
|

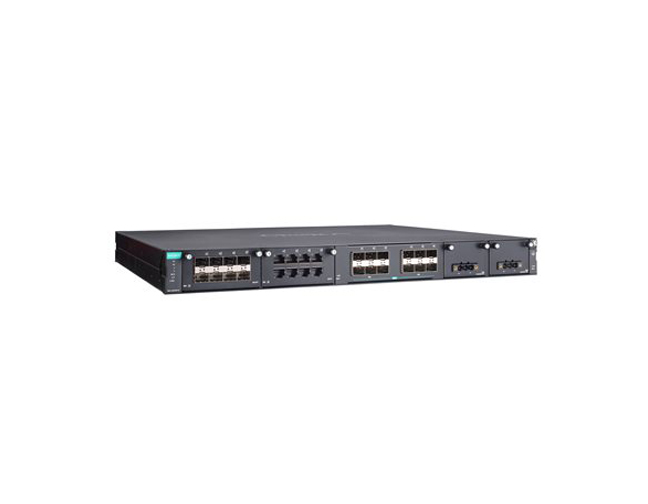

Moxa RKS-G4028-PL-L3-12XGS-T
The RKS-G4028-PL-L3 Series is purpose-built to deliver exceptional reliability and performance for mission-critical industrial and business applications, including power substation automation, railway operations, and intelligent transportation systems.
With its high-density 10GbE backbone (up to 12 fixed 10G SFP+ ports), modular LAN expansion (up to 16 additional Gigabit ports), and dual isolated redundant power supply options (12/24/48 VDC, 110/220 VAC/VDC, or 48V EPS), the RKS-G4028-PL-L3 Series ensures robust communication while reducing wiring and maintenance costs.
Even better, the dual-sided power installation design (front or rear) maximizes installation convenience for diverse cabinet layouts.
Specifications
- 1000/2500/10000BaseSFP ports: 12
- Out-of-band management (OOBM): 1 x 8-pin RJ45 1 GbE ethernet port (MGMT)
- Expansion module slots: 2
- All ethernet ports on the RKS-G4028-PL series operate in full-duplex mode exclusively. Half-duplex transmisson is not supported.
- Management: ARP, Back Pressure Flow Control, HTTP, HTTPS, IPv4, Linkup Delay, LLDP, Port Mirroring (SPAN, RSPAN), Private MIB, RARP, RMON, SFTP, SMTP SNMP Inform, SNMP Trap, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
- Industrial protocols: EtherNet/IP, Modbus TCP, PROFINET
- Storage Port: USB Type A, microSD card
- Console port: RS-232 (RJ45)
- Total PoE power budget: 720W
- Overload current protection: supported
- Reverse polarity protection: supported
- IP rating: IP40
- Installation: Rack Mounting
- Operating Temperature: -40~75ºC
|
|
|
|
