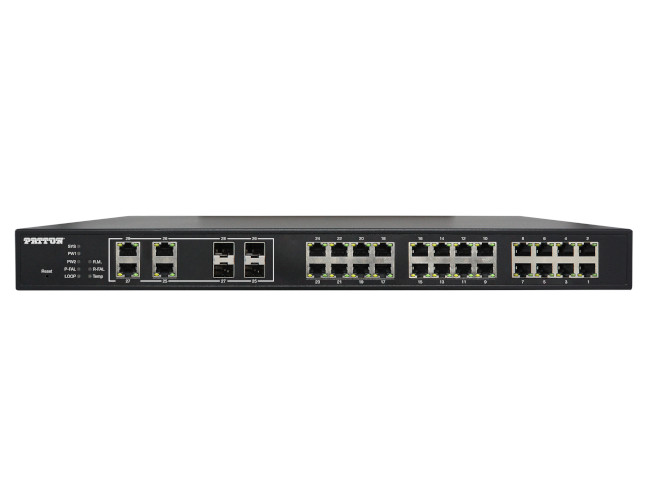

FP2024E/4GE/RJ45+SFP/UI - 28-Port Industrial Gigabit POE & SFP Managed Ethernet Switch, with twenty-four 10/100 RJ-45 POE+ Ether
by PATTON
|
|
|
|
- Gigabit Ethernet & POE - Supports 24*10/100/1000Tx IEEE 802.3 af/at PoE+ Gigabit Ports (PSE: 30W/Port) +
4*Gigabit Copper/SFP Ports (4*10/100/1000Tx RJ45 + 4*100/1000 SFP Slots).
- Flexible SFP Support - SFP Socket for Easy and Flexible Fiber Backbone Integration.
- Management - SNMP v1/v2c/v3, WEB, Telnet, Standard MIB.
- Security - 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), HTTPS, SSH and SNMPv3.
- Redundancy - Proprietary Ring (Ultra-High-Speed Recovery Time < 20 ms), RSTP/STP (802.1w/1D), MSTP Does
not support ERPS.
- DC/POE Power - 48VDC Power Input (46-57 VDC for PoE af, 53-57 VDC is Recommended for PoE at) & 2 Relay
Outputs. Power Polarity Reverse Protection. Overload Current Protection.
- Rugged Design - Extended Operating Temperature: -40°~75°C, IP30 Protection. 1U Rackmount Chassis.
|
|
|
The FP2024E_4GE_RJ45_SFP_UI_ is a 28-port industrial Gigabit PoE+ managed Ethernet switch embedded
with 24*10/100/1000Tx Ethernet ports that support IEEE802.3at/af for a maximum of 30W/port and 4*100/1000 SFP slots
for combo RJ45/Fiber connections.
The unit is a fully manageable Layer 3 Ethernet switch. It supports Source NATs, Destination NATs, and Static
Routing. It also has network redundancy function using ERPS, X-Ring (ultra-high-speed recovery time <20 ms),
RSTP/STP (802.1w/1D), and MSTP.
The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, port lock, RMON, and
802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control
networks.
Our 10/100/1000 PoE switches comply with industry leading safety standards, such as IEEE 802.3at and IEEE 802.3af.
These industrial-managed PoE gigabit switches boast a variety of Power over Ethernet features such as scheduled
power cycles, power budgeting, and port settings, as well as Light Layer 3 network management and network redundancy
support.
| Management & Protocols |
Web browser, Telnet, Serial Console, TFTP, SNMPv1/v2c/v3, Port Speed/Duplex
Configuration, IPv6, IEEE 802.1Q, GVRP, Port-based VLAN, G.8032 ERPS, Proprietary Ring, 802.1w/D
RSTP/STP, IP Access Security, Port Security, DHCP Client, Port and IP Binding, and 802.1X Port
Access Control.
|
| Flow Control |
IGMP Snooping/Query for Multicast Group Management, Port Trunking,
Static/802.3ad, LACP Rate Limit and Storm Control, IEEE 802.1p QoS CoS/TOS/ DSCP Priority Queuing,
and IEEE 802.3x Flow Control.
|
| Switch Properties |
Memory Buffer 4.1Mbits. Jumbo Frame 9,216bytes. MAC Table Size 8k.
|
| Ethernet Ports |
24*RJ45 Port w/10/100/1000TX with PoE+, Auto Negotiation Speed, Full/Half Duplex
Mode, and Auto MDI/MDI-X Connection.
|
| RJ45/Fiber |
4*100/1000 SFP Slots.
|
| Fiber Wavelength |
Depends on SFP Modules.
|
| LED Indicators |
10/100T (X): Link/Activity, Duplex/Collision Gigabit Copper: Link/Activity, Speed
(1000 Mbps) SFP: Link/Activity.
|
| Console Port |
RS-232 (RJ45).
|
| Power Input Voltage |
46 to 57VDC, Redundant Inputs.
|
| Power Connection |
4-Pin Terminal Block.
|
| Power Consumption |
20 Watts for System
|
| Maximum PoE Power Budget |
685 Watts
|
| Packaging |
Metal enclosure, IP30 Protection
|
| Dimensions |
438 x 43.6 x 259.2 mm (W x H x D)
|
| Weight |
Unit 8.37lbs.
|
| Mounting |
1U 19" Rackmount
|
| Operating Temperature |
-40¢XC to 75¢XC
|
|
