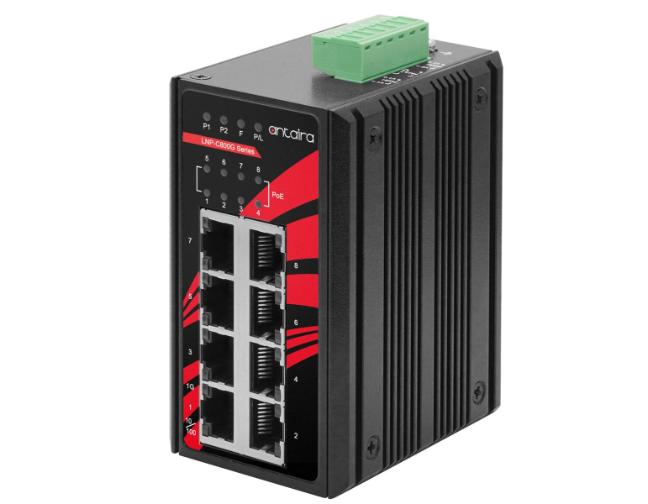

Antaira LNP-C800G - 8-Port Industrial Compact PoE+ Gigabit Unmanaged Ethernet Switch, w/8*10/100/1000Tx
by ANTAIRA
|
|
|
|
LNP-C800G_SUMMARY.html
Features
- Compact Industrial Grade Design
- Supports 8*10/100/1000Tx IEEE 802.3af/at Compliant with 30W/Port
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- Power Input: 48~55VDC in 6-Pin Terminal Block
- Power Polarity Reverse Protect
- Overload Current Protection
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operation Temperature Range: -10°C to 65°C
|
|
|
LNP-C800G_DESCRIPTION.html
LNP-C800G - is an 8-port industrial compact PoE+ gigabit unmanaged Ethernet switch that supports 8*10/100/1000Tx Ethernet ports. The LNP-0800G is a backward compliant industrial PoE+ switch that will support IEEE 802.3af/at standards providing a maximum of 30 watts per port with an input voltage of 48~55VDC.
Antaira's LNP-C800G industrial switch has been specifically designed for rugged and harsh environmental deployments. This Ethernet switch series is housed in a hardened IP30-rated metal enclosure that includes DIN-rail and wall mounting hardware. The operating temperature for a standard temperature range is -10°C to 65°C. The LNP-C800G also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS (including on-vehicle), solar, security, or any other outdoor or harsh environment.
LNP-C800G.html
| Standards |
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T
Gigabit Ethernet
IEEE 802.3af/at Power over Ethernet
|
| Processing Type |
Store and Forward
|
| Protocols |
CSMA/CD
|
| Flow Control |
IEEE 802.3x flow control, back pressure flow control
|
| Switching Architecture |
Back-Plane (Switching Fabric): 16Gbps
|
| Transfer Rate |
14,880pps for Ethernet
148,800pps for Fast Ethernet
1,488,000pps for Gigabit Ethernet
|
| Jumbo Frame |
9.2Kbytes
|
| MAC Table Size |
4K
|
| Memory Buffer |
1.5Mbits
|
| Ethernet Port |
8*10/100/1000BASE-T (30W/Port)
Auto-negotiation speed, Full/Half duplex mode, and Auto MDI/MDI-X
connection
|
| PoE Pin Out |
V+, V+, V-, V-, for pin 1, 2, 3, 6
(End-span, MDI Alternative A)
|
| LED Indicators |
System: Power 1, Power 2, Fault, P/L
Ethernet Ports: On-Link/Flash-data transmitting
PoE:
On-connected to PD devices
|
| Network Cable |
10BASE-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m)
100BASE-TX: 2-pair UTP/STP
Cat. 5 cable EIA/TIA-568 100-ohm (100m)
1000BASE-TX: 4-pair UTP/STP Cat. 5/5E cable; EIA/TIA-568
100-ohm (100m)
|
| Housing |
Metal, IP30 protection
|
| Dimensions |
53 x 95 x 75 mm
|
| Weight |
Unit: 1.27 lbs.
Shipping: 1.67 lbs.
|
| Mounting |
DIN-Rail mounting, Wall mounting
|
| Input Voltage |
48~55VDC Redundant Input
|
| Power Connection |
1 removable 6-contact terminal block
|
| Relay Contact |
24VDC, 1A resistive
|
| Overload Current Protection |
Present (Slow-Blown Fuse)
|
| Reverse Polarity Protection |
Present
|
| System Power Consumption |
Max. 5.5W full loading
|
| Max PoE Power Budget |
240W
|
| Operating Temperature |
-10°C to 65°C
|
| Storage Temperature |
-40°C ~ 85°C
|
| Ambient Relative Humidity |
5 to 95%, (non-condensing)
|
| EMI |
FCC Part 15 Subpart B Class A,
CE EN55032/EN61000-6-4 Class A
|
| EMS |
CE EN55035/EN61000-6-2,
IEC61000-4-2,3,4,5,6,8
|
| Free Fall |
IEC60068-2-32
|
| Shock |
IEC60068-2-27
|
| Vibration |
IEC60068-2-6
|
| Green |
RoHS Compliant
|
| Certifications |
FCC, CE
|
|
|
|
|
