Antaira LMP-1604G-4XS-bt - 16-Port Industrial Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch, with 12*10/100/1
by ANTAIRA

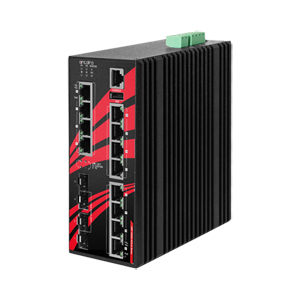

Antaira LMP-1604G-4XS-bt

Antaira Technologies’ LMP-1604G-4XS-bt is an 16-port managed Gigabit PoE++ Ethernet switch embedded with 12*10/100/1000T Ethernet ports that support IEEE 802.3bt for a maximum of 90W/port, and 4*1G/2.5G/10G SFP+ slots for fiber connection. It is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.

LMP-1604G-4XS-bt is IP30 rated and DIN-rail mountable. It supports standard operating temperature from -10°C to 65°C. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment. With a compact form and all connections facing the front of the Ethernet switch making it easy viewing of installations in a reserved space.

Antaira LMP-1604G-4XS-bt : 16-Port Industrial Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch, with 12*10/100/1000BASE-T (90W/Port) and 4*1G/2.5G/10G SFP+ Slots, 48-55VDC Power Input

LMP-1604G-4XS-bt.pdf

1,798 K
