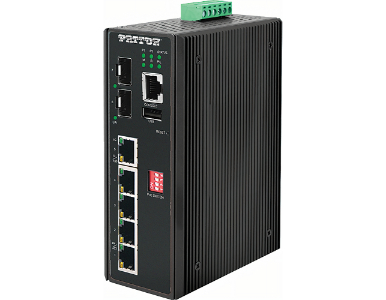

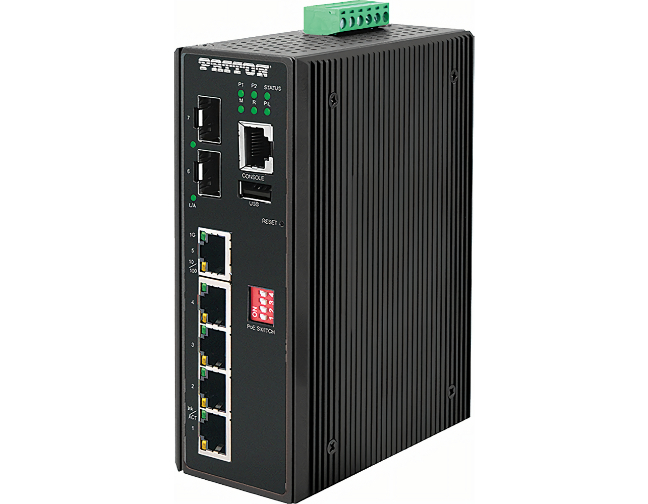

Patton's™ FP2005E-2SFP-4BT-24DC - is a 7-port industrial Gigabit PoE++ managed Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports that support IEEE802.3at/af/bt for a maximum of 90W/port, 1*10/100/1000Tx gigabit Ethernet port, and 2*100/1000 dual rate SFP slots for fiber connection. The FP2005E/BT is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market's™ open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1x/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.

The FP2005E/BT is IP30 rated and DIN-rail mountable. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment.

Technology	L2 Switching: Port/MAC/Protocol/IP Subnet-based VLAN GARP/GVRP Loop Guard Link Aggregation static/LACP BPDU guard Error disable recovery IGMP snooping v1/v2/v3 MLD snooping v1/v2 IGMP filtering IPMC throttling / filtering leave proxy DHCP snooping G.8032 v1/v2 L3 Switching: DHCP option82 Static routes QoS: 802.1p Queueing Input priority mapping Storm control for Unicast/Multicast/Broadcast Port/Queue/ACL policer Port egress shaper Queue egress shaper DiffServ (DSCP) Tag remarking Scheduler mode Power Saving: ActiPHY PerfectReach IEEE 802.3az EEE power management Network Redundancy: STP/RSTP/MSTP Port trunk with LACP ERPS v1/v2 (<50ms) Configuration: Http Https Telnet SSH CLI TFTP SNMP v3v System/Diagnostics: Dual Image Protection PING PING6
Switch Properties	Switch Architecture: Back-Plane (Switching Fabric): 24 Gbps Protocols: IPv4/IPv6 SNMP v1/v2c/v3 LLDP LLDP-MED HTTP HTTPS SSHv2 telnet DHCP client DHCPv6 client DHCP server Port Mirror DNS client/proxy IP based Access Filter ICMPv6, syslog Time Zone /Daylight Saving NTP client RMON sFlow Loop detection Console Port USB configuration backup/restore Power lost warning Relay trigger Priority Queues: 8 Processing Type: Store and Forward Flow Control: IEEE 802.3x for full duplex mode Back pressure for half duplex mode Transfer Rate: 14,880 pps for Ethernet port 148,800 pps for Fast Ethernet port 1,488,000 pps for gigabit Ethernet port Packet Buffer: 4Mbits Jumbo Frame: 9.6Kbytes MAC Table Size: 8K VLAN Group: 4095 IGMP Group: 1024
Port Interface	Ethernet Port: 5*10/100/1000Base-Tx (90W/port for ports 1~4 only) Auto negotiation speed Full/half duplex mode Auto MDI/MDI-x connection SFP Port: 2*100/1000 SFP Slots RS232 Serial Console: 1*RS232 in RJ45 LED Indicators: System: System: Power 1, Power 2, Master (M), Ring (R), Status, PoE Load (P/L) Ethernet ports: Speed/Link/Active PoE: On-connected to PD devices SFP: Link/Active
Protection	Network Cable: 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m) 100Base-Tx: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m) 1000Base-Tx: 4-pair UTP/STP Cat. 5/5E cable EIA/TIA-568 100-ohm (100m)
Mechanical Characteristics	Housing: Metal IP30 protection Dimensions: 2.1W x 5.6H x 3.9D in. (54W x 142H x 99D mm) Weight: Unit: 2.29 lbs (1.04 kg) Shipping: 3.01 lbs (1.37 kg) Mounting: DIN-Rail Mounting Wall Mounting
Power Requirement	Input Voltage: 48-55 VDC Redundant Input (53-55 VDC power input for BT PoE PSE) Power Connection: Removable 6-Contact Terminal Block Relay Contact: 24VDC, 1A resistive PoE Pin Assignment: V-, V-, V+, V+ for pin 1, 2, 3, 6 V+, V+, V-, V- for pin 4, 5, 7, 8 *Support Modes: Mode A, Mode B, 4-Pair Mode Overload Current Protection: Present Reverse Polarity Protection: Present System Power Consumption: 10.8W PoE Power Budget: 240W @ 48-55 VDC
Environmental Limits	Operating Temperature: STD: 14 to 149°F (-10 to 65°C) EOT: -40 to 167°F (-40 to 75°C) Storage Temperature: -40 to 185°F (-40 to 85°C) Ambient Relative Humidity: 5 to 95%, (non-condensing)
Regulatory Approvals	EMI: FCC Part 15 Subpart B Class A CE EN55032/EN61000-6-4 Class A EMS: CE EN55035/EN61000-6-2 Class A IEC61000-4-2,3,4,5,6,8 Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 Green: RoHS Compliant Certifications: FCC, CE
