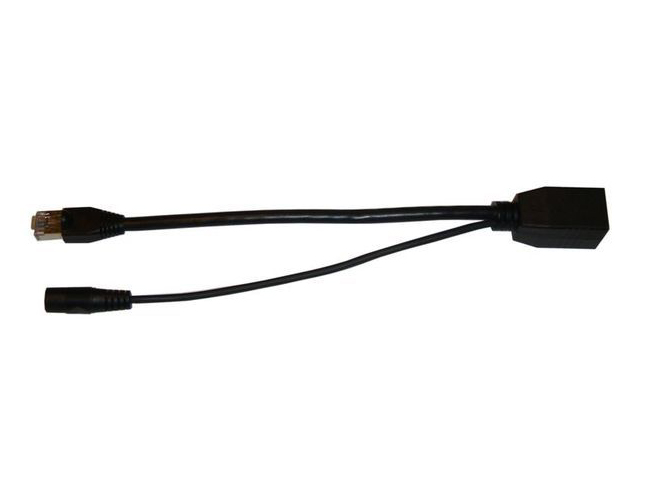

POE-INJ-S - Passive POE Injector. Injects DC Power to RJ45 Socket pins 4,5 (+) and 7,8(-). Shielded. Black.
by Tycon Systems

Shielded CAT5e cable and connectors add protection against surges and interference.
Cat5 rated RJ45 jack for more reliable high speed data connections (10/100MB)
Shrouded DC jack for improved safety

Description
Specification
Datasheet

The POE-INJ-S is a low cost Power Over Ethernet (PoE) Inserter to insert PoE power to a CAT5 ethernet data cable on the unused ethernet pins 4,5(+) and 7,8(-).

The DC Input / Output voltage can be up to 57 V depending on the power supply used. The PoE voltage equals the input voltage.

Supports Passive POE distances up to 100m (328feet).

DC connector is 5.5x2.1mm size. Total length of part is 10".

POE-INJ-S Specifications

Materials	UL Rated Materials, Meets RoHS Requirements
Voltage Rating	60VDC Maximum
RJ45 Jack	Shielded CAT5 Rated, Gold Plated Contacts
RJ45 Power Pins	4,5(+) 7,8(-)
DC Jack or Plug	5.5 x 2.1mm, Shrouded
DC Wire Size	28AWG x 4
CAT5 Wire Size	24AWG x 8, Shielded
Cable Length	165mm (6.5”)
Total Length	254mm (10”)
Weight	31 g (1.1 oz )
Operating Temp	-40°C to 80°C (-40°F to 176°F)
