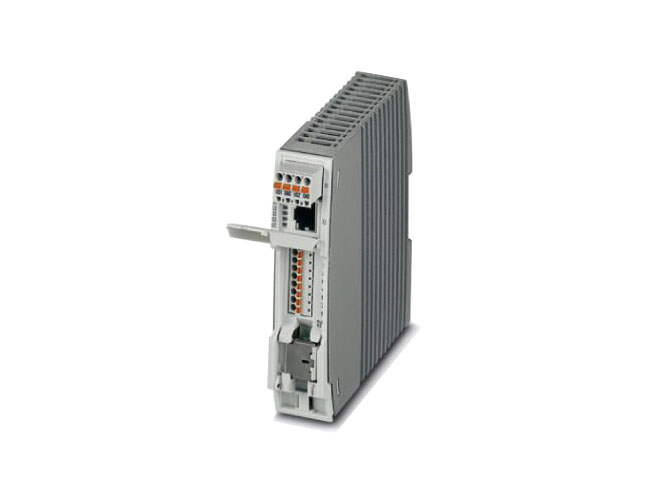

Serial Interface |
Interface 1 |
Ethernet |
Connection method |
Push-in connection |
Transmission length |
100 m (including patch cables) |
Conductor cross section solid min. |
0.2 mm² |
Conductor cross section solid max. |
1.5 mm² |
Conductor cross section flexible min. |
0.2 mm² |
Conductor cross section flexible max. |
1.5 mm² |
Conductor cross section AWG min. |
26 |
Conductor cross section AWG max. |
16 |
Torque |
|
Stripping length |
8 mm |
Pin assignment |
1:1 |
Basic functions |
PSE/Midspan, compliant with IEEE 802.3af, at |
Serial transmission speed |
10/100/1000 Mbps |
Output nominal voltage |
54 V DC (PoE) |
Output power |
30 W |
Maximum output power |
40 W |
Interface 2 |
Ethernet |
Connection method |
RJ45 CAT5e |
Wire diameter incl. insulation |
|
Ambient conditions |
Ambient temperature (operation) |
-40 °C ... 75 °C |
Ambient temperature
(storage/
transport) |
-40 °C ... 85 °C |
Permissible humidity (operation) |
10 % ... 95 % (non-condensing) |
Altitude |
5000 m (For restrictions see manufacturer's declaration) |
Degree of protection |
|
General |
Electrical isolation |
VCC // SCM + FE // PoE |
Test voltage data interface/power supply |
1.5 kV AC (50 Hz, 1 min.) |
Electromagnetic compatibility |
Conformance with EMC Directive 2014/30/EU |
Mounting position |
Vertical |
Net weight |
324.72 g |
Housing material |
Plastic |
Color |
Gray |
MTTF
(SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day)) |
1510 Years |
MTTF
(SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day)) |
661 Years |
MTTF
(SN 29500 standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day)) |
256 Years |
Conformance |
CE-compliant |
UL, USA |
UL 60079-0 Ed. 6 / UL 60079-15 Ed. 4 |
UL, USA/Canada |
Class I, Zone 2, AEx nA IIC T4, Ex nA IIC Gc X T4 |
Class I, Division 2, Groups A, B, C, D |
UL, Canada |
CSA 22.2 No. 60079-0 Ed. 3 / CSA 22.2 No. 60079-15:16 |
Standards and Regulations |
Electromagnetic compatibility |
Conformance with EMC Directive 2014/30/EU |
Type of test |
Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 |
Test result |
10 Hz ... 57 Hz, amplitude ±3.5 mm, 57 Hz ... 150 Hz, 5g |
Type of test |
Shock in acc. with EN 60068-2-27/IEC 60068-2-27 |
Test result |
30g for 11 ms, three shocks in each spatial direction |
Type of test |
Continuous shock according to EN 60068-2-27/IEC 60068-2-27 |
Test result |
10g for 16 ms, 1000 shocks in each spatial direction |
Standards/
regulations |
EN 61000-4-2 |
Contact discharge |
± 6 kV (Test Level 3) |
Indirect discharge |
± 6 kV |
Standards/
regulations |
EN 61000-4-3 |
Frequency range |
80 MHz ... 3 GHz (Test Level 3) |
Standards/
regulations |
EN 61000-4-4 |
Comments |
Criterion B |
Standards/
regulations |
EN 61000-4-5 |
Signal |
± 1 kV (Data line, asymmetrical) |
± 2 kV (I/O cable on field side only, asymmetric) |
Standards/
regulations |
EN 61000-4-6 |
Frequency range |
0.15 MHz ... 80 MHz |
Standards/
regulations |
IEC 61643-21 |
IEC test classification |
C2 |
Conformance |
CE-compliant |
UL, USA |
UL 60079-0 Ed. 6 / UL 60079-15 Ed. 4 |
UL, USA/Canada |
Class I, Zone 2, AEx nA IIC T4, Ex nA IIC Gc X T4 |
Class I, Division 2, Groups A, B, C, D |
UL, Canada |
CSA 22.2 No. 60079-0 Ed. 3 / CSA 22.2 No. 60079-15:16 |
Noxious gas test |
ISA-S71.04-1985 G3 Harsh Group A |
Function |
Designation |
Shield current monitoring |
Switch-on threshold |
≥ 30 mA |
Local diagnostics |
Yellow LED |
Precision |
± 5 % |
Response time |
3 s |
Continuous shield current |
≤ 2 A |
Power consumption |
270 mW (Shield current monitoring) |
Dimensions |
Width |
30.2 mm |
Height |
130 mm |
Depth |
120 mm |
Note |
Utilization restriction |
EMC: class A product, see manufacturer's declaration in the download area |
Power Supply |
Nominal supply voltage |
24 V DC |
48 V DC |
Supply voltage range |
18 V DC ... 57 V DC |
Max. current consumption |
2.1 A |
1.4 A (24 V DC) |
0.7 A (48 V DC) |
Power consumption |
≤ 75 W |
Protective circuit |
Reverse polarity protection |
Conductor cross section flexible max. |
4.00 mm² |
Conductor cross section flexible min. |
0.75 mm² |
Conductor cross section solid max. |
|
Conductor cross section solid min. |
0.75 mm² |
Conductor cross section AWG max. |
12 |
Conductor cross section AWG min. |
20 |
Approvals |
|
|
Environmental Product Compliance |
REACH SVHC |
Lead 7439-92-1 |
China RoHS |
Environmentally friendly use period: unlimited = EFUP-e |
