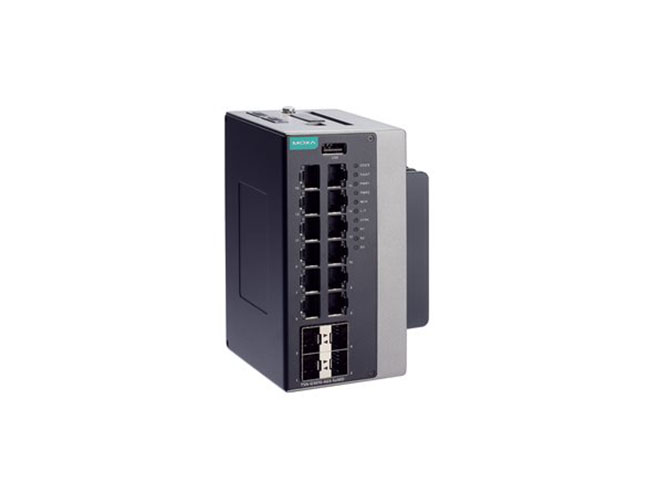

Moxa TSN-G5016-4GS-SoMD-LV-T

The TSN-G5016 Series is designed to meet the demands of modern industrial networks and realize the vision of Industry 4.0. Equipped with up to four 10GbE Ethernet ports, these switches provide high-bandwidth, bounded low-latency communication, making them ideal for data-intensive applications and futureproof network expansion.

The compact and flexible design allows the TSN-G5016 Series to fit easily into confined spaces, while the durable IP40-rated metal housing ensures reliable operation in harsh industrial environments. The user-friendly web interface simplifies configuration and management, reducing deployment time and operational complexity.

Leveraging standard Ethernet time-sensitive networking (TSN) technology, the TSN-G5016 Series enables one unified Ethernet network that supports reliable, deterministic, bounded low-latency communication, with the ability to expand TSN capabilities through future firmware upgrades.

Specifications

• Standards
  • IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3z for 1000BaseX
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1p for Class of Service
    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEE 1588v2 PTP Precision Time Protocol (hardware-based)
    IEEE 802.1 AS for Time Synchronization
    IEEE 802.1 Qbv for Time-aware Shaper
• 10/100/1000Base T(X) ports (RJ45 connector): 12, Auto negotiation speed, Full/Half duplex mode, auto MDI/MDI-X Connection
• 1000Base SFP Slots: 4
• Management:
  • IPv4/IPv6
    LLDP
    SMTP
    SNMP Inform
    SNMPv1/v2c/v3
    SNMP Trap
    DHCP Server/Client
    ARP
    TFTP
    SFTP
    HTTP
    HTTPS
    SSH
    Telnet
    Private MIB
    Syslog
    Port Mirroring
• MIB:
  • Bridge-MIB
    Ethernet-like-MIB
    IEEE8021-AS-MIB
    IEEE8021-SPANNING-TREE-MIB
    IF-MIB
    LLDP-MIB
    PTPBASE-MIB
    Q-BRIDGE-MIB
    RFC1213-MIB
    SNMPv2-MIB
• Redundancy protocols: RSTP, STP
• Security:
  • Broadcast storm protection
    Trust access control
    Login and Password Policy
    HTTPS/SSL
    SSH
    SNMPv3
    RADIUS
    TACACS+
• Time management:
  • SNTP
    NTP Server/Client
    IEEE 1588v2 PTP (hardware-based)
    IEEE 802.1 AS
    IEEE 802.1 Qbv
• Filter: 802.1Q VLAN, static multicast
• MAC table size: 9K
• Max. no. of VLANS: 256
• VLAN ID Range: VID 1 to 4094
• Packet Buffer size: 8 Mbits
• Console ports: RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
• USB connector: this interface is reserved for future use)
• Alarm contact channels: 1 relay output with current carrying capacity of 1A @ 24VDC
• Buttons: reset buttons
• Digital input channels: 1
• Digital inputs:
  • +13 to +30 V for state 1
    -30 to +3 V for state 0
    Max. input current: 8 mA
• LED indicators: STATE, FAULT, PWR1, PWR2, M/H, C/T, SYNC, R1, R2, R3
• Connector: 2 removeable 4-contact terminal blocks
• Input voltage: 12 to 48 VDC redundant dual inputs
• Operating voltage: 9.6 to 60 VDC
• Input current: 3A (max.)
• Overload current protection: supported
• Reverse polarity protection: supported
• Housing: metal
• IP Rating: IP40
• Installation: DIN-Rail mounting, wall mounting (with optional kit)
• Operating temperature: -40~70ºC
• Safety:
  • UL 61010-2-201
    EN 62368-1
• EMC: EN 55032/35
• EMI: CISPR 32, FCC part 15B Class A
• EMS:
  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF
• Shock: IEC 60068-2-27
• Freefall: IEC 60068-2-32
• Vibration: IEC 60068-2-6
