Antaira LMX-1604G-4XS-T - 16-Port Industrial Gigabit Managed Ethernet Switch, with 12*10/100/1000Tx and 4*10G SFP Slots; 48~55VD
by ANTAIRA

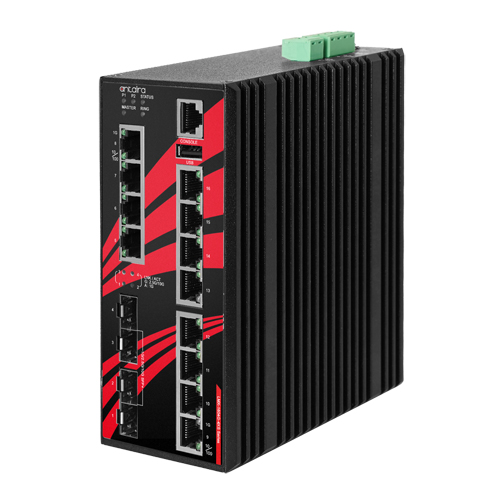

Antaira LMX-1604G-4XS-T

Antaira Technologies’ LMX-1604G-4XS-T is an 16-port managed Gigabit Ethernet switch embedded with 12*10/100/1000T Ethernet ports and 4*1G/2.5G/10G SFP+ slots for fiber connection. It is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.

LMX-1604G-4XS-T is IP30 rated and DIN-rail mountable. It supports extended operating temperature from -40°C to 75°C. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment. With a compact form and all connections facing the front of the Ethernet switch making it easy viewing of installations in a reserved space.

Antaira LMX-1604G-4XS-T: 16-Port Industrial Gigabit Managed Ethernet Switch, with 12*10/100/1000Tx and 4*10G SFP Slots; 12~48VDC Power Input; EOT: -40ºC to 75ºC

LMX-1604G-4XS-T.pdf

1,632 K
