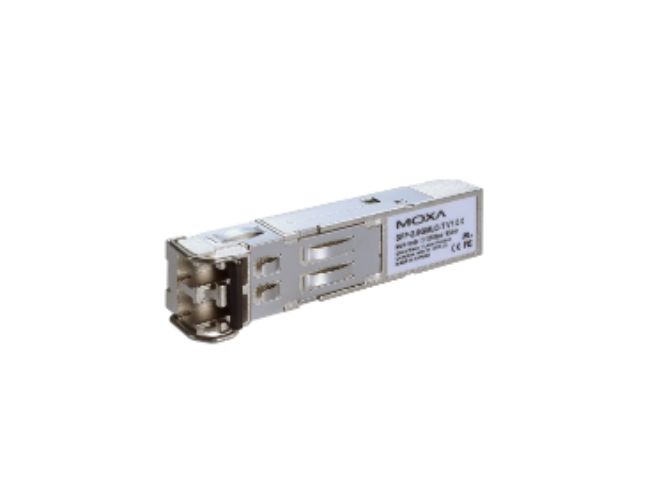

SFP-2.5GLSLC-T - SFP module with 1 2.5GBaseFX port with LC connector, single-mode, for 20 km transmission, -40 to 85C operatin
by MOXA

The SFP-2.5G Series 1-port 2.5 Gigabit Ethernet SFP modules are available as optional accessories for a wide range of Moxa switches.

Ethernet Interface

• Connectors

  • Duplex LC connector

• Optical Fiber

  • Typical Distance: To reach the typical distance of specified fiber transceiver, please refer to formula: Link budget(dB) > dispersion penalty(dB) + total link loss(dB)

Power Parameters

• Power Consumption

  • Max. 1 W

Environmental Limits

• Operating Temperature

  • -40 to 85C (-40 to 185F)

• Storage Temperature (package included)

  • -40 to 85C (-40 to 185F)

• Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Standards and Certifications

• Safety

  • CE, FCC, IEC 60825-1, UL 62368-1, IEC 62368-1, EN 62368-1
