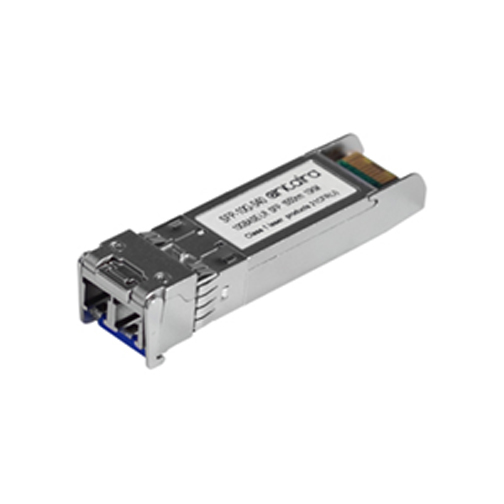

Antaira SFP-10G-S40-T

1550nm, -40~85C (* Cisco Compatible *)
by ANTAIRA

10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR
Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module SFP+
1550nm DFB transmitter, PIN photo-detector
2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers
Operating case temperature: -40 to 85°C
All-metal housing for superior EMI performance
Low power consumption
Advanced firmware allow customer system encryption information to be stored in transceiver
Cost effective SFP+ solution, enables higher port densities and greater bandwidth

Description
Specification
Datasheet

SFP-10G-S40-T

The SFP-10G-S40-T is is designed to transmit and receive optical data over single mode optical fiber for link length 40km. The transmitter converts 10Gbit/s serial PECL or CML electrical data into serial optical data compliant with the 10GBASE-LR standard.

SFP-10G-S40-T: 10G SFP+ ER Transceiver, Single-Mode 40 KM/ LC/ 1550nm, -40ºC~85ºC (Cisco compatible)
