Moxa TN-4512A-WV-CT-T - 12 ports Layer 2 Managed Switch with 12 Fast Ethernet ports, 24 to 110 VDC, conformal coating, -40 to 75
by MOXA

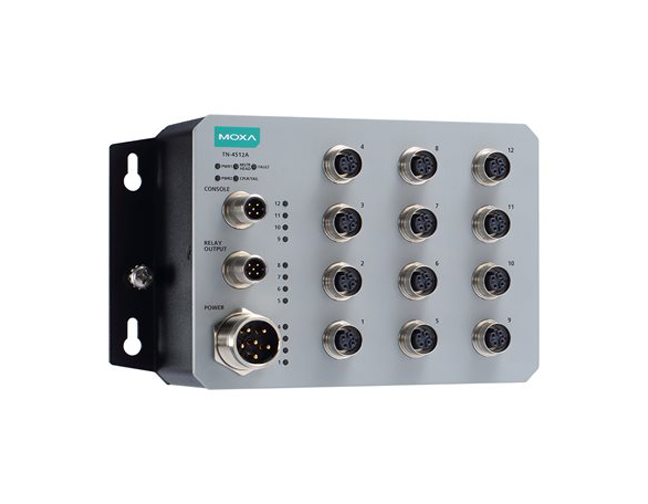

Moxa TN-4512A-WV-CT-T

The ToughNet TN-4500A Series M12 managed Ethernet switches are designed for railway applications, including rolling stock and wayside installations. The switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable operation in industrial environments where vibration and shock are commonplace. The TN-4500A Series Ethernet switches provide 12 or 24 fast Ethernet M12 ports with or without IEEE 802.3at/af compliant PoE functionality, and the Gigabit models have 4 Gigabit Ethernet interfaces with PoE and optional bypass relay functionality. In addition, the fiber models provide 2 Gigabit fiber interface ports with an embedded 2 km multimode fiber transceiver. The PoE switches are classified as power source equipment (PSE).

The switches provide up to 30 watts of power per port, and can be used to power IEEE 802.3at/af compliant powered devices (PDs), such as IP cameras, wireless access points, and IP phones. The 24 to 110 VDC wide power input range and isolated dual power inputs not only allow you to use the same type of power source at different sites around the globe, but also increase the reliability of your communications system. Furthermore, the -40 to 70°C operating temperature range of the switches ensures they can withstand deployment in harsh environments. TN-4500A Series Ethernet switches are compliant with the mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.

Specifications

• Alarm contact channels: 2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1A @ 30 VDC
• 10/100BaseT(X) ports (M12 D-coded 4-pin female connector): 12
• Management:
  • IPv4/IPv6
    Flow control
    LLDP
    ICMP
    Port Mirroring
    QoS/CoS/ToS
    RMON
    SMTP
    SNMP Inform
    SNMP Trap
    SNMPv1/v2c/v3
    Syslog
    Account Management
    Loop Protection
    DNS Server
    DHCP option 82 (relay agent)
    Port-based DHCP Server
    DHCP Server (options 1/3/12/15/42/50/55)
    DHCP Client (options 1/3/50/51/53/54/55/57/61/66/67)
• Security:
  • Access control list
    Trust access control
    Broadcast storm protection
    TACACS+
    RADIUS
    HTTPS/SSL
    SSH
    Rate Limit
    SCP
• Redundancy Protocols:
  • MSTP
    RSTP
    STP
    Turbo Chain
    Turbo Ring v1/v2
    Turbo Ring with DRC
    Static Port Trunk
    LACP
• Console port: M12 A-coded male connector
• No. of power inputs: 2
• Power connector: M23 connector
• Overload current protection: supported
• Reverse polarity protection: supported
• Housing: Metal
• IP Rating: IP42
• Power Consumption (Max.): 6.2W @ 24 VDC
• Installation: wall mounting
• Operating temperature: -40~70ºC
